Description

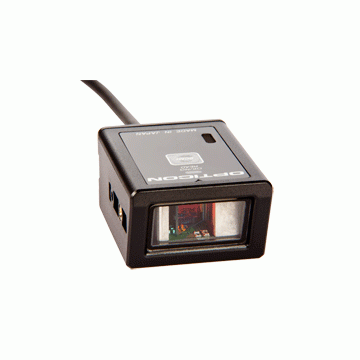

The Opticon NLV1001 is a high-performance stationary laser barcode scanner designed for precision scanning in space-restricted or embedded applications. Engineered with a powerful bi-directional scan engine, it delivers up to 100 scans per second, ensuring accurate and fast barcode reading even in high-throughput environments.
This compact fixed-mount scanner supports Keyboard Wedge, USB (HID/VCP), and RS232 interfaces, making it ideal for integration into kiosks, ATMs, ticketing systems, and other unattended data capture points.
Its rugged yet lightweight ABS casing ensures long-term reliability, while the IP43 rating provides protection against dust and moisture. Whether scanning standard linear barcodes, stacked codes, or postal symbologies, the NLV1001 offers seamless performance and versatility.
Product Features
-
Compact footprint: Ideal for embedded or stationary applications (only 30 x 20 x 43.3 mm)
-
Bi-directional scanning at 100 scans/sec – rapid, reliable read performance
-
Reads 1D barcodes, stacked codes, postal codes, and PDF417
-
Trigger modes: Manual, multiple read, auto-trigger, or software serial trigger
-
Depth of field up to 630mm on 1D barcodes (Code 39, PCS 0.9)
-
Interfaces supported: USB HID/VCP, RS232, and Keyboard Wedge
-
IP43 protection – dust-resistant and splash-proof
-
Temperature tolerant: Operates from -10°C to 45°C
-
Lightweight & durable: Only 18.5g, drop tested to 0.75m
-
LED & buzzer indicators for feedback in noisy or silent workspaces
Product Specifications
Model | Opticon NLV1001 |
Scan Type | Stationary Laser Scanner (Bi-directional) |
Scan Rate | 100 scans per second |
Light Source | 650 nm visible laser diode |
Interfaces | USB (HID/VCP), RS232, Keyboard Wedge |
Trigger Modes | Manual, Auto-trigger, Multiple read, Software trigger |
Supported Barcodes | 1D (UPC/EAN, Code 39, Code 128, etc.), PDF417, Postal, Composite codes |
Weight | 18.5g (excl. cable) |
Dimensions | 30 x 20 x 43.3 mm |
Housing Material | ABS Plastic, Black |
Certifications | CE, FCC, VCCI, RoHS, IEC 60825-1 Class 2, FDA CDRH Class II |
Features
- 43
- Handsfree
- Wired
- Serial / RS232
- Black
Attachments
Specifications
Light source |
Aiming laser diode, illumination LEDs |
Scan Method |
Bi-directional scanning |
Scan rate |
Up to 100 scans/sec |
Trigger mode |
Manual, multiple read, auto-trigger, serial software trigger |
Resolution |
0.127 mm / 5 mil |
Pitch Angle |
-35 to 0°, 0 to +35° |
Roll (Tilt) Angle |
-20 to 0°, 0 to +20° |
Skew (Yaw) Angle |
-50 to -8°, +8 to +50° |
Reading Indicators |
1 LED (red/green/orange) |
Depth of field |
70 - 630 mm (res. 1.0 mm / 39 mil), 50 - 400 mm (res. 0.5 mm / 20 mil) 50 - 240 mm (res. 0.25 mm / 10 mil) 50 - 130 mm (res. 0.15 mm / 6 mil) 60 - 100 mm (res. 0.127 mm / 5 mil) at PCS 0.9, Code 39 |
Interface |
RS232 - DB9 PTF connector with external power supply Keyboard Wedge - MiniDIN6 F/M connector with external power supply USB - Ver. 1.1, HID/VCP, USB-A connector |
Symbologies supported |
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, Composite Codes, MicroPDF 417, PDF 417 |
Input voltage |
5V ± 10% |
Input Current |
Max. 150 mA |
Operating Temperature |
-10 to 45 °C |
Storage Temperature |
-20 to 60 °C |
Operating Humidity |
20 - 85 % (non-condensing) |
Storage Humidity |
20 - 90 % (non-condensing) |
Ambient light immunity |
Fluorescent 3,000 lx max, Direct sun 50,000 lx max, Incandescent 3,000 lx max |
Drop Test |
0.75 m / 5 ft drop onto concrete surface |
Protection rate |
IP43 |
Antistatic Electricity |
10 kV (Non-destructive) |
Case |
ABS, Black |
Dimensions (W x H x D) |
30 x 20 x 43.3 mm |
Weight |
18.5 g |
Product Compliance |
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
