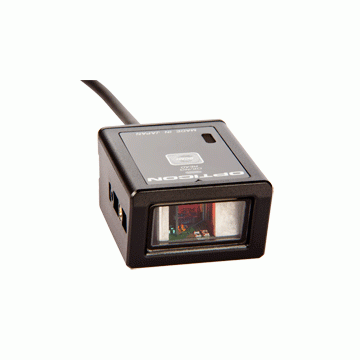

NLV-1001 Fixed Laser Scanner with USB Interface

OPNLV1001-UHID
$269.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

The NLV1001 is designed to be an easily integrated fixed position scanner. This compact yet rugged scanner is ideal for applications that require a high performance, aggressive laser scanner with the ability to fit into small places. This reliable fixed position scanner employs an aggressive laser scan engine that reads at a rate of 100 scans per second. The integrated auto-trigger mode enables hands-free operation. The NLV1001 offers a wide variety of configurable options for easy integration in your business process. The NLV1001 is equipped with a compact ABS housing with 2 different mounting options. This stationary scanner is available with an RS232, USB (HID/VCP) and Keyboard Wedge interface, to fit any design and implementation requirement.
Main Features:
  • Automatic Scanning Operation
  • Fixed mounting scanner
  • RS232, PS2, USB or USB-HID interface
  • Up to 100 scan/sec
  • ABS Housing with 2 different mounting options
  • IP43 rating
  • Multiple indicator lights

Attachments

Opticon OPNLV1001 (nlv1001.pdf, 827 Kb) [Download]

Specifications

Light source

Aiming laser diode, illumination LEDs

Scan Method

Bi-directional scanning

Scan rate

Up to 100 scans/sec

Trigger mode

Manual, multiple read, auto-trigger, serial software trigger

Resolution

0.127 mm / 5 mil

Pitch Angle

-35 to 0°, 0 to +35°

Roll (Tilt) Angle

-20 to 0°, 0 to +20°

Skew (Yaw) Angle

-50 to -8°, +8 to +50°

Reading Indicators

1 LED (red/green/orange)

Depth of field

70 - 630 mm (res. 1.0 mm / 39 mil),

50 - 400 mm (res. 0.5 mm / 20 mil)

50 - 240 mm (res. 0.25 mm / 10 mil)

50 - 130 mm (res. 0.15 mm / 6 mil)

60 - 100 mm (res. 0.127 mm / 5 mil)

at PCS 0.9, Code 39

Interface

RS232 - DB9 PTF connector with external power supply

Keyboard Wedge - MiniDIN6 F/M connector with external power supply

USB - Ver. 1.1, HID/VCP, USB-A connector

Symbologies supported

JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, Composite Codes, MicroPDF 417, PDF 417

Input voltage

5V ± 10%

Input Current

Max. 150 mA

Operating Temperature

-10 to 45 °C

Storage Temperature

-20 to 60 °C

Operating Humidity

20 - 85 % (non-condensing)

Storage Humidity

20 - 90 % (non-condensing)

Ambient light immunity

Fluorescent 3,000 lx max, Direct sun 50,000 lx max, Incandescent 3,000 lx max

Drop Test

0.75 m / 5 ft drop onto concrete surface

Protection rate

IP43

Antistatic Electricity

10 kV (Non-destructive)

Case

ABS, Black

Dimensions (W x H x D)

30 x 20 x 43.3 mm

Weight

18.5 g

Product Compliance

CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
