Description

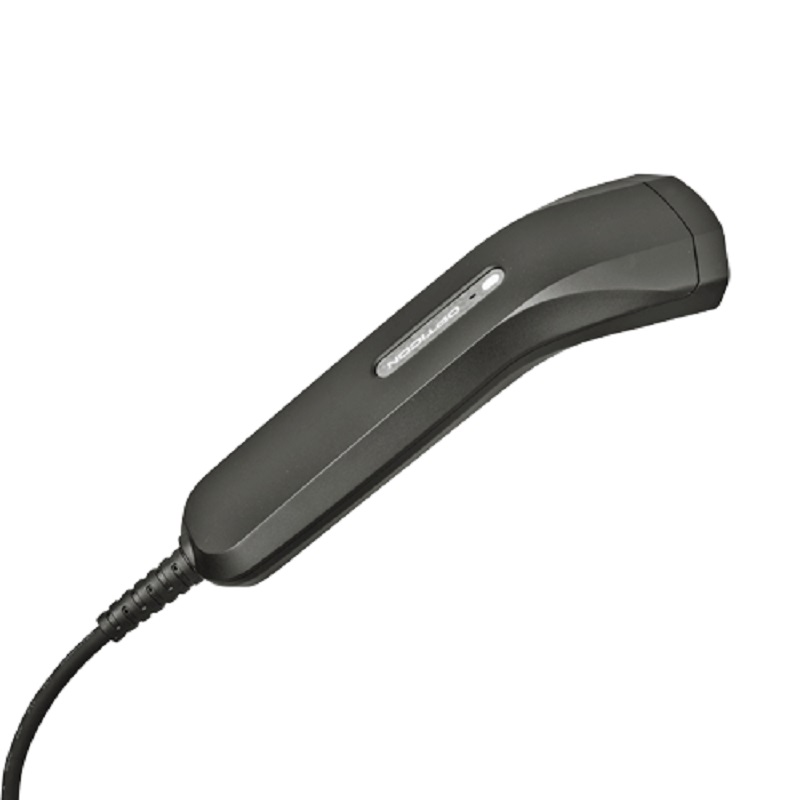

Experience reliable and fast barcode scanning in a compact design with this Handheld CCD Barcode Scanner, ideal for retail, library, office, and inventory use. Featuring a high-performance linear CCD scan engine, it captures 1D barcodes at a speed of up to 300 scans per second, ensuring maximum efficiency.Its ultra-lightweight form (just 55g) is ergonomically designed for all-day comfort, yet rugged enough to survive 1.5m drops to concrete. With USB plug-and-play functionality and optional RS232 support (special order), it offers dependable performance in a wide range of working environments.Whether you’re scanning low-contrast barcodes or densely packed labels, this scanner’s impressive depth of field and broad symbology support make it a versatile and cost-effective solution.
Product Features
- High-speed scanning at 300 scans/sec
- Linear CCD scan engine with 1500-pixel resolution
- USB interface standard; RS232 available (special order)
- Reads all major 1D symbologies
- Wide depth of field: 40mm to 600mm (Code 39)
- Drop tested: Withstands repeated 1.5m drops
- IP42 rated for dust and splash resistance
- Ultra-lightweight – only 55g
- Easy to use with manual scan codes for configuration
Product Specifications
Scan Engine | Linear CCD Image Sensor (1500 pixels) |
Light Source | Red LED |
Scan Pattern | Single Line |
Scan Rate | 300 scans/sec |
Minimum Resolution | 0.076 mm (3 mil) at PCS 0.9 |
Depth of Field | Up to 600 mm (on Code 39 39 mil) |
Reading Angles | Tilt: ±25°, Pitch: ±50°, Skew: ±65° |
Symbologies | All major 1D barcodes + postal codes (Chinese Post, Korean Postal, etc.) |
Interfaces | USB 2.0 (HID/COM), RS232 DB9 (female, external power required) |
Drop Resistance | 1.5m to concrete |
Environmental Rating | IP42 (Dust and splash resistant) |
Operating Temp | 0°C to 50°C |
Storage Temp | -20°C to 60°C |
Humidity | 5% to 95% (non-condensing) |
Dimensions (WxDxH) | 55.9 x 154 x 33.8 mm |
Weight | 55 g |
Features
IP Rating:
- 42
Scan Engine:
1D
Form Factor:
- Handheld
Connectivity:
- Wired
Interface:
- USB
Color:
- Black
