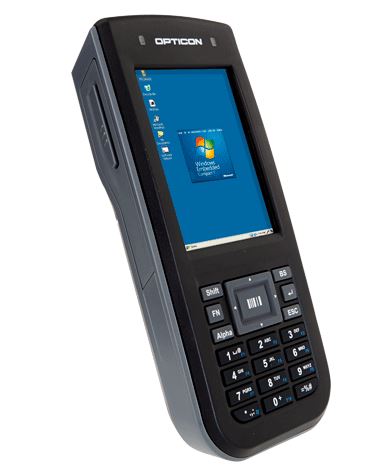

OPTICON H-32 1D PDT Kit with Battery

240x320, 1.5m, 54, Windows, 256MB, 1D, Opticon
$939.00
For Special & Volume Pricing - Call +61 489 087 085
OPH32-1D
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon H-32 is a lightweight and rugged portable data terminal designed for mobile data collection in retail, logistics, and field service environments. Powered by Windows Embedded Compact 7 with an AM3354 ARM Cortex A8 800 MHz processor, the H-32 offers reliable performance with built-in productivity tools like WordPad, Internet Explorer, and Opticon’s scanner application.Featuring a 2.8” QVGA touchscreen, 1D laser barcode scanner, and a 26-key alphanumeric keypad, the H-32 is intuitive and easy to use for frontline workers. Connectivity options include Wi-Fi IEEE 802.11 a/b/g/n, Bluetooth 2.1 + EDR, and USB OTG for flexible communication. With IP54 protection, 1.5m drop resistance, and a hot-swappable 1800mAh battery.


Product Features

  • Runs on Windows Embedded Compact 7 with preloaded productivity applications.
  • AM3354 ARM Cortex A8, 800 MHz processor for smooth performance.
  • 2.8” QVGA transflective touchscreen with LED backlight for clear viewing indoors and outdoors.
  • Integrated 1D laser barcode scanner with fast 100 scans/sec performance.
  • Rugged design with IP54 protection and 1.5m drop resistance.
  • Wi-Fi IEEE 802.11 a/b/g/n and Bluetooth 2.1 + EDR for wireless data transfer.
  • 26-key alphanumeric keypad with navigation and scan keys for flexible input.



Product Specifications

Processor

AM3354 ARM Cortex A8, 800 MHz

Operating System

Windows Embedded Compact 7

Display

2.8” QVGA (240 × 320), transflective touchscreen with LED backlight

Keypad

26 keys: alphanumeric, navigation, function, power, scan keys

Connectivity

Wi-Fi ; Bluetooth v2.1 + EDR; USB 2.0 OTG

Power

3.7V 1800mAh Li-ion rechargeable (included), 15mAh backup RTC battery

Durability

IP54 protection; 1.5m drop resistance

Dimensions (WxHxD)

64.8 × 145.7 × 26.8 mm

Weight

Approx. 195g

Features

Display Resolution:
  • 240x320
Display Size:
  • 2.8"
Drop Rating:
  • 1.5m
IP Rating:
  • 54
Keyboard:
  • 26Keys
Operating System:
  • Windows
RAM:
  • 256MB
Scan Engine:
1D
Manufacturer
:
Opticon

Attachments

Brochure (oph32_brochure.pdf, 124 Kb) [Download]
