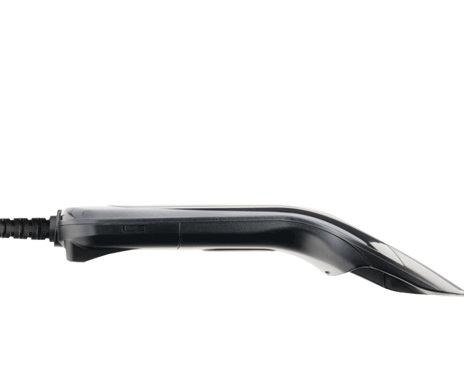

OPTICON L-22X 2D Imager Scanner Black with Stand USB

42, 2D, Standard, Handheld, Wired, USB, Black, Opticon
$279.00
For Special & Volume Pricing - Call +61 2 9090 4610
OPL22XBKIT-U
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon L-22X is a high-performance cabled 2D barcode scanner featuring a lightning-fast CMOS imaging engine, 360° omnidirectional reading, and the ability to read from LCD screens and smartphones with ease. Designed for reliability and accuracy, the L-22X reads all common 1D and 2D barcodes, including PDF417, QR Code, and Data Matrix.

Built with an ARM Cortex-A7 800MHz processor, the L-22X delivers outstanding performance with a rapid 100 frames-per-second scan rate, making it ideal for demanding retail, logistics, and industrial applications. With auto-trigger, stand detection, and multiple interface options including USB and RS232, it easily integrates into any system.

Its durable construction, compact design, and IP42 rating ensure the L-22X withstands harsh conditions, including drops up to 1.5m. Whether used handheld or in presentation mode, the L-22X boosts productivity with accuracy and ease.

Product Features

  • Omnidirectional 360° high-speed scanning

  • Reads 1D, 2D, postal codes, and OCR-B

  • Auto-trigger, stand detection, and manual trigger modes

  • Reads from screens and reflective surfaces

  • LED aiming for precise targeting

  • CMOS sensor with 100 fps scan rate

  • Interfaces: USB HID/COM, RS232C

  • Rugged IP42-rated design, 1.5m drop resistance

  • Lightweight and ergonomic for extended use

Product Specifications

Model

Opticon L-22X

Scan Engine

2D CMOS Imager

Processor

ARM Cortex-A7, 800 MHz

Scan Rate

100 fps

Light Source

Warm white LED

Aiming & Trigger

LED Aimer, Manual/Auto-trigger/Stand Detection

1D Barcode Support

UPC, EAN, Code 39, Code 128, GS1-128, Codabar, MSI/Plessey, etc.

2D Barcode Support

PDF417, MicroPDF417, QR Code, Data Matrix, Aztec, MaxiCode, etc.

Dimensions

165.3 x 62.2 x 31.4 mm

Weight

Approx. 150 g (excl. cable)

Included Accessories

Stand, 5V Power Supply (for RS232 version)

Certifications

CE, FCC, VCCI, RoHS, EN55032, EN55024, IEC61000

Features

IP Rating:
  • 42
Scan Engine:
2D
Scan Range:
  • Standard
Form Factor:
  • Handheld
Connectivity:
  • Wired
Interface:
  • USB
Color:
  • Black
Manufacturer
:
Opticon

Attachments

Brochure (opl22x_brochure.pdf, 98 Kb) [Download]
