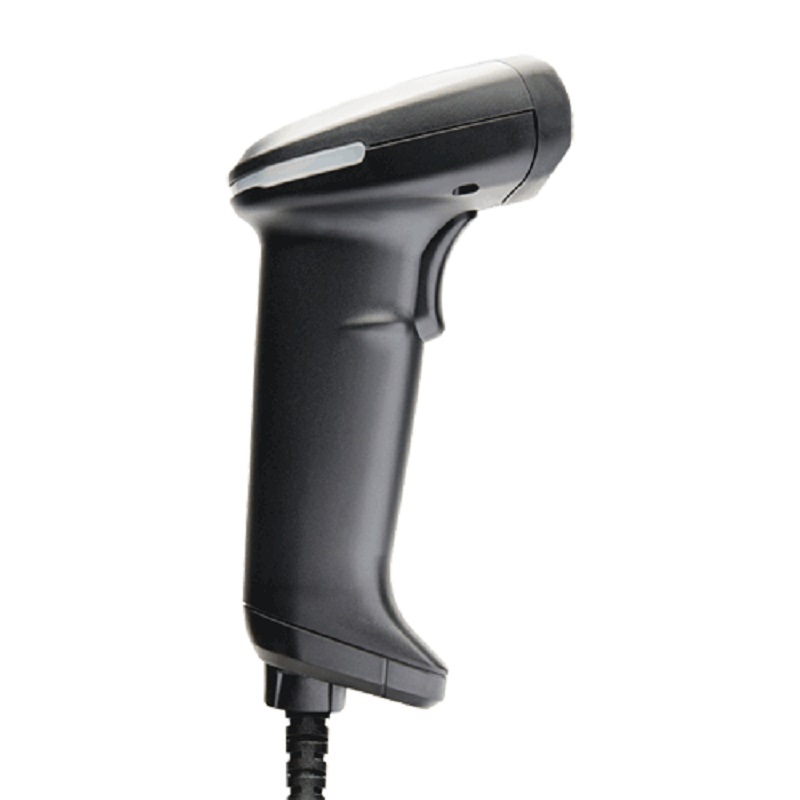

Opticon L-46X 2D Black /w Stand USB Imager Scanner

42, 2D, Standard, Handheld, Wired, USB, Black, Opticon
$336.00
For Special & Volume Pricing - Call +61 2 9090 4610
OPL46XBKIT-U
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon L-46X is a fast, lightweight, and precise 2D barcode imager scanner, designed for retail, logistics, healthcare, and general commercial environments. Featuring a powerful CMOS area sensor, green LED aimer, and ARM Cortex-A7 800 MHz CPU, this scanner excels in speed and accuracy, even when scanning fast-moving or low-contrast barcodes.

With support for a wide range of 1D and 2D barcode symbologies, plus OCR and postal codes, the L-46X offers high-performance scanning up to 100 fps, along with multiple trigger modes including manual and auto-trigger. It connects easily via USB or RS232 interface, with a replaceable cable for maximum flexibility.

Built for durability, the L-46X can withstand multiple drops from 1.8 metres and is IP42 rated, making it ideal for high-demand, high-traffic environments.

Product Features

  • High-Speed Scanning – Up to 100 frames per second for rapid and accurate reads

  • 2D CMOS Imager – Captures 1D, 2D, GS1, composite, postal, and OCR barcodes

  • Powerful Opticon Engine – Backed by a 800 MHz ARM Cortex-A7 processor

  • Green LED Aiming – Clear and precise targeting for ease of use

  • Fast-Moving Object Capture – Ideal for retail checkouts and manufacturing lines

  • Multiple Trigger Modes – Manual and auto-trigger support

  • Exchangeable Interface Cable – USB or RS232 options for seamless integration

  • Durable Design – Withstands 1.8m drops and vibration, IP42 protected

Product Specifications

Model

Opticon L-46X

Scan Engine

2D CMOS Area Sensor, 640 x 480 pixels

Light Source

Green LED aimer + White LED illumination

Scan Rate

Up to 100 fps

CPU

ARM Cortex-A7 800 MHz

Interfaces

USB 2.0 (HID/COM), RS232 with external power

Minimum Resolution

0.1 mm / 3.9 mil at PCS 0.9

Supported Symbologies

1D, 2D (PDF417, QR, MicroQR, DataMatrix, Aztec, etc.), GS1, Postal, OCR

Depth of Field

Up to 330 mm (varies by barcode type and size)

Field of View

Horizontal: 38°, Vertical: 26.4°, Diagonal: 46.4°

Operating Temperature

-5°C to 50°C

Drop Resistance

1.8 m / 6 ft drops to concrete

Sealing

IP42

Weight

112 g (excluding cable)

Colour

Black

Features

IP Rating:
  • 42
Scan Engine:
2D
Scan Range:
  • Standard
Form Factor:
  • Handheld
Connectivity:
  • Wired
Interface:
  • USB
Color:
  • Black
Manufacturer
:
Opticon

Attachments

Brochure (opl46x_brochure.pdf, 88 Kb) [Download]
