Description

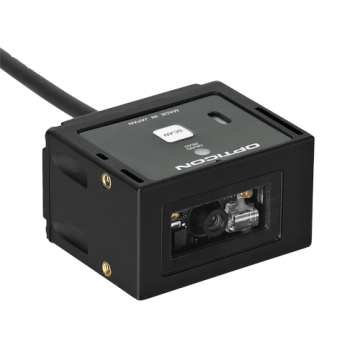

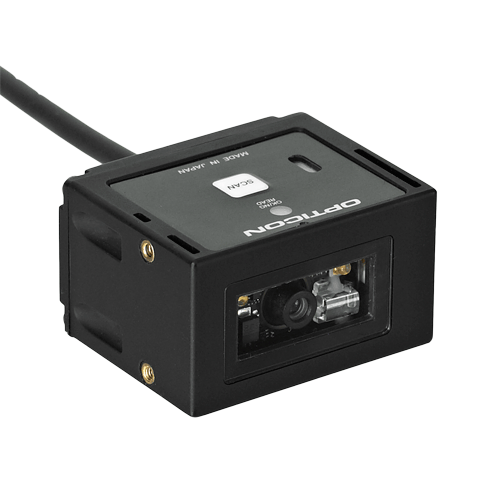

The Opticon NLV3101 Fixed Position 2D Scanner is a compact, high-performance imager designed for seamless integration into industrial, retail, and kiosk applications. Despite its ultra-compact form factor, this fixed-mount scanner delivers high-speed scanning performance, even on challenging or damaged barcodes.
With multi-interface options, including RS232, USB, and Keyboard Wedge, and a built-in data editing program, the NLV3101 adapts easily to various operational environments. Its advanced CMOS area sensor with up to 60 frames per second scan rate ensures fast, reliable capture of 1D, 2D, Postal, and Composite Codes.
Engineered with an IP65-rated enclosure, antistatic protection, and robust durability against shock, vibration, and ambient light, the NLV3101 is ideal for harsh environments. Whether mounted on production lines or integrated into POS systems, this scanner guarantees excellent reliability and versatility.
Product Features
-
High-Speed Scanning of 1D, 2D, Postal & Composite Codes
-
Data Editing Program for flexible output formatting
-
Ultra-Compact Design – Among the smallest 2D fixed scanners available
-
CMOS Area Sensor with up to 60 fps capture speed
-
LED Aiming & Visual Indicators for precise targeting and easy feedback
-
Multiple Interfaces: RS232, USB, and Keyboard Wedge
-
Durable Construction – IP65-rated, drop-tested, vibration resistant
Product Specifications
Scan Method | CMOS Area Sensor, 752 x 480 pixels, 60 fps |
Light Source | Green LED Aiming with White Illumination LEDs |
Interfaces | RS232, USB (VCP), Keyboard Wedge |
Reading Indicators | Multi-Color LED (Red/Green/Orange), Buzzer |
Field of View | Horizontal 40.6°, Vertical 26.4° |
Protection Rating | IP65 |
Dimensions (WxHxD) | 41.1 x 33 x 24 mm |
Weight | 30g |
Features
- 65
- Fixed Mount
- Wired
- Serial / RS232
- Black
