Description

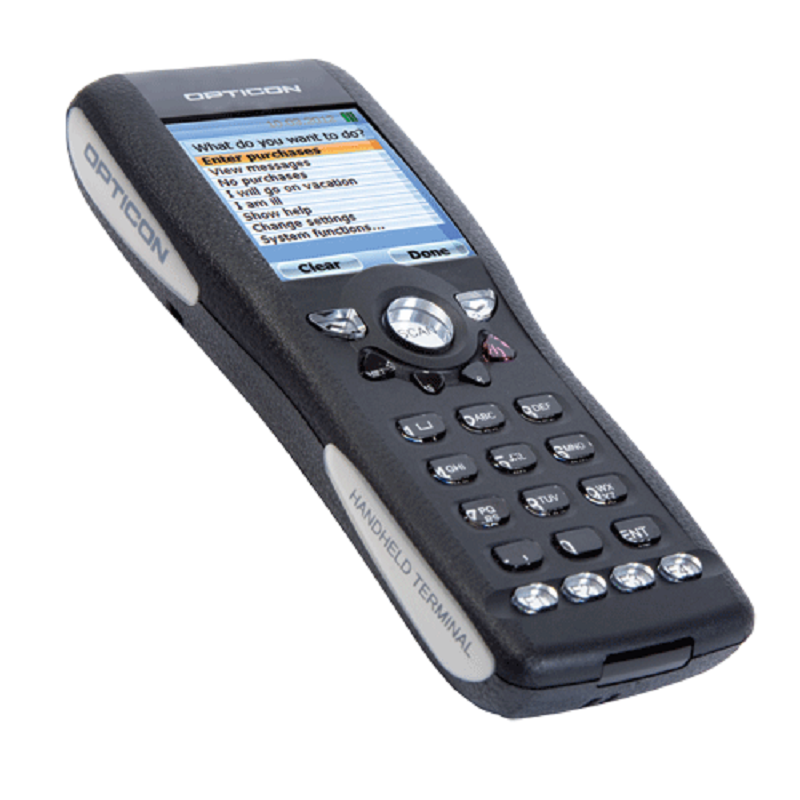

The Opticon OPH1005 Handheld Batch Terminal is a compact, lightweight, and durable barcode scanning device designed for businesses needing reliable mobile data capture. Equipped with a 2-inch TFT LCD QVGA colour display, an (alpha)numeric keypad, and a 650nm laser diode scanner, the OPH1005 delivers fast and accurate barcode scanning for a wide range of applications.Powered by an RX62N 32-bit MCU and running a proprietary OS programmable in C, this batch terminal is fully customisable to suit your workflow needs. With 128MB NAND memory, 4MB FlashROM, and 4MB SRAM, it provides efficient performance for data capture and processing.Built tough, the OPH1005 is IP54 rated and tested to withstand drops up to 1.5m onto concrete, making it suitable for demanding environments such as retail, warehousing, logistics, and field services. With a 1100mAh rechargeable Lithium-Ion battery, it offers up to 40 hours of operation per charge, ensuring reliable performance throughout extended shifts.
Product Features
- Compact and lightweight at only 140g (including battery).
- 2” TFT LCD QVGA colour display with backlight for easy viewing.
- Laser barcode scanner with 100 scans per second and wide angle support.
- Programmable in C-language with free SDK and compiler.
- 128MB NAND Flash + 4MB RAM for reliable data storage.
- 40 hours operating time per charge (with backlight off).
- Durable design with IP54 rating and 1.5m drop resistance.
- Multiple symbology support for 1D and 2D barcodes
Product Specifications
Model | Opticon OPH1005 |
Processor | RX62N 32-bit MCU |
Operating System | Proprietary (programmable in C) |
Memory | 128MB NAND, 4MB FlashROM, 4MB SRAM |
Display | 2” TFT LCD QVGA colour (320 × 240 pixels) |
Keypad | 23 keys |
Battery | 1100mAh Li-ion, up to 40 hours operation |
Durability | IP54, 1.5m drop resistance |
Dimensions | 55 × 136 × 23 mm |
Weight | 140g (including battery) |
Features
- 320 x 240
- 2”
- 1.5m
- 54
- 23Keys
- Laser barcode scanner
- 4MB
- 4MB
