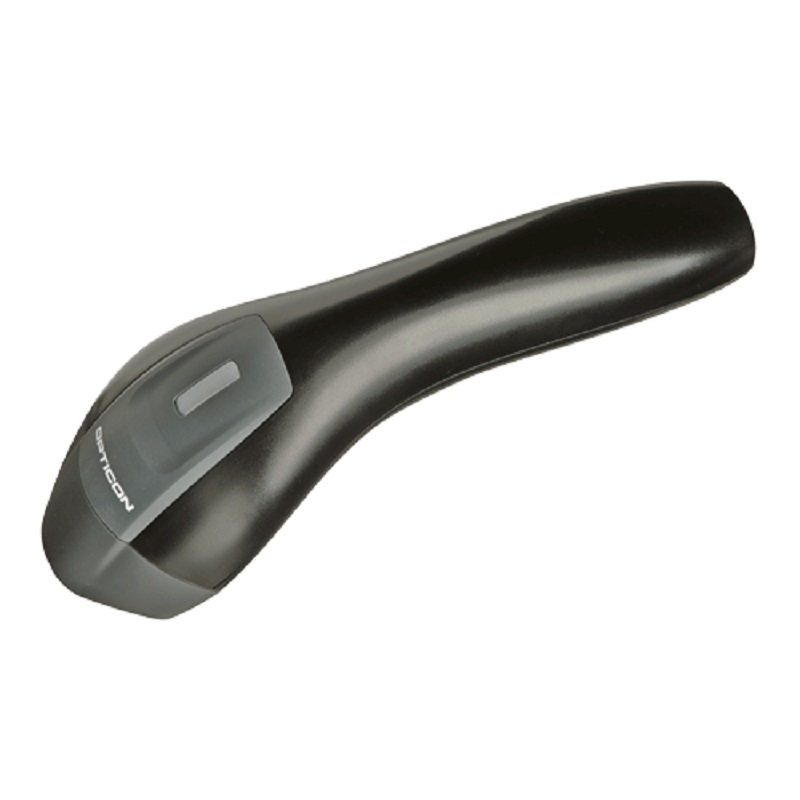

OPTICON OPI-1101 2D Cordless Imaging Scanner

2D, Handheld, Cordless, USB, Black, Opticon
$592.00
For Special & Volume Pricing - Call +61 2 9090 4610
OPI1101B
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon OPI-1101 is a powerful wireless 2D imager barcode scanner designed for high-performance scanning in retail, logistics, healthcare, and industrial environments. This model features a reliable USB interface, making it easy to integrate with a wide range of desktop systems and POS terminals.

Equipped with a CMOS area sensor and a green LED aiming light, the OPI-1101 delivers precise and fast barcode capture across 1D and 2D symbologies. Its plug-and-play functionality ensures a seamless setup experience via USB ComPort emulation or HID USB, while the compact, ergonomic design enhances user comfort during extended scanning sessions.

Built to withstand drops from 1.5 metres and rated for use in high-traffic environments, this scanner offers dependable durability and scanning accuracy. A rechargeable 1200mAh battery provides hours of wireless operation, and charging is done via USB, making it ideal for modern workspaces.

Product Features

  • USB Interface (HID/ComPort) – Supports plug-and-play connectivity with most PCs and POS systems.

  • Wireless Freedom – Operates on IEEE 802.15.4, 2.4 GHz wireless standard with up to 100m range.

  • CMOS 2D Imaging Engine – Reads all common 1D and 2D barcodes, including QR, PDF417, Data Matrix, Aztec, UPC/EAN, and more.

  • Green LED Aiming & Red Illumination – Improves targeting accuracy and operator comfort.

  • Multiple Trigger Modes – Manual, auto-trigger, stand detection, and multi-read support.

  • Ergonomic & Lightweight – Comfortable to use at only 140g with a balanced grip for all-day scanning.

Product Specifications

Model

Opticon OPI-1101

Scan Engine

2D CMOS Area Imager (752 x 480 pixels)

Interfaces

USB HID, USB Virtual Com Port

Wireless Protocol

IEEE 802.15.4, 2.4GHz, up to 100m range

Supported Symbologies

1D & 2D: QR, PDF417, Data Matrix, Aztec, UPC/EAN etc.

Battery

3.7V 1200mAh Li-Polymer (Rechargeable)

Charging

USB cable (supplied)

Charging Time

Approx. 4 hours

Scan Rate

Up to 60 frames per second

Scan Modes

Manual, Auto-trigger, Multiple Read, Stand Detection

Weight

Approx. 140g



Features

Scan Engine:
2D
Form Factor:
  • Handheld
Connectivity:
  • Cordless
Interface:
  • USB
Color:
  • Black
Manufacturer
:
Opticon

Attachments

Brochure (opi1101_datasheet.pdf, 126 Kb) [Download]
