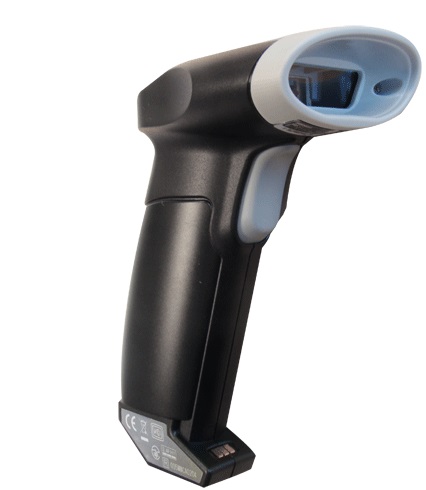

OPTICON OPI-3301 2D Imager cordless Scanner only

42, 2D, Standard, Handheld, Cordless, Bluetooth, Black, Opticon
$601.00
For Special & Volume Pricing - Call +61 2 9090 4610
OPI3301B
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon OPI-3301 is a sleek and lightweight cordless 2D barcode scanner designed for fast, high-performance scanning across retail, logistics, healthcare, and commercial service environments. Equipped with a high-resolution CMOS area sensor, the OPI-3301 effortlessly decodes 1D and 2D barcodes — including QR codes, PDF417, Data Matrix and postal codes — whether printed or displayed on a screen.

With integrated Bluetooth 2.0 connectivity, the OPI-3301 ensures wireless communication up to 10 metres from the host device, offering greater mobility and freedom for users in busy workspaces. This device is designed with durability and operator comfort in mind, boasting an ergonomic form factor, IP42 protection, and drop resistance of 1.5 metres.

Its fast 80 frames-per-second scan rate, auto-focus imaging, and intuitive aiming system make it ideal for fast-paced POS environments, warehouse management, or field service. The included rechargeable lithium-ion battery supports up to 10 hours of continuous operation, and a dedicated Bluetooth communication/charging cradle (CRD3301) is available separately for convenient power management.

Product Features

  • 2D CMOS Imager with Auto-Focus – Captures a wide variety of 1D and 2D barcodes, including on mobile screens.

  • Bluetooth Wireless Technology (Class 2) – 10-metre range with secure 1-to-1 pairing and encryption.

  • CMOS Area Sensor – 900 x 512 pixel resolution with up to 80 fps scan rate.

  • High Scan Accuracy – Reads barcodes with resolutions as fine as 0.127 mm / 5 mil.

  • Lightweight and Ergonomic – Weighs just 110g, ideal for prolonged use.

Product Specifications

Model

Opticon OPI-3301

Scanner Type

Cordless 2D CMOS Imager

Scan Method

CMOS area sensor, 900 x 512 pixels

Connectivity

Bluetooth 2.0, SPP profile, Class 2, 10m range

Supported Symbologies

1D, 2D (QR, Data Matrix, PDF417, etc.), Postal, Composite

Drop Resistance

1.5 m (5 ft) to concrete

Sealing

IP42 rated

Battery Type

Lithium-Ion 3.7V 1100 mAh

Dimensions (W x H x D)

56 x 137 x 113 mm

Weight

Approx. 110 g (incl. battery)

Interface Support

USB, RS232

Features

IP Rating:
  • 42
Scan Engine:
2D
Scan Range:
  • Standard
Form Factor:
  • Handheld
Connectivity:
  • Cordless
Interface:
  • Bluetooth
Color:
  • Black
Manufacturer
:
Opticon

Attachments

Brochure (opi3301_brochure.pdf, 246 Kb) [Download]
