Description

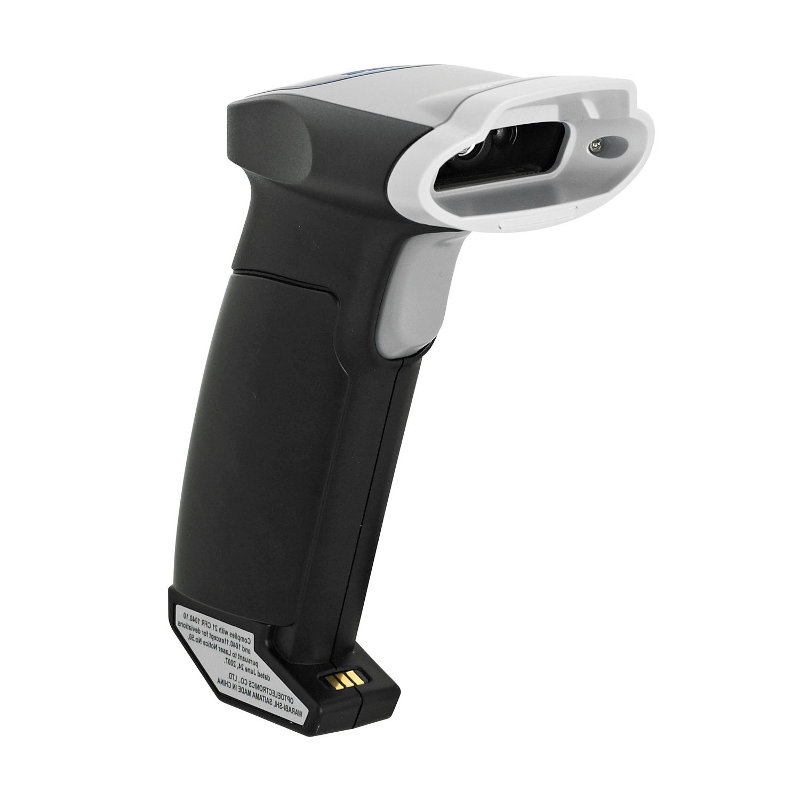

The Opticon OPI-3301 is a compact and lightweight wireless 2D CMOS barcode scanner that delivers high-speed, accurate scanning performance in demanding environments. Featuring Bluetooth 2.0 communication, this cordless scanner provides freedom of movement up to 10 metres, making it ideal for retail, logistics, healthcare, and office applications.
Powered by an advanced CMOS area sensor with autofocus and a targeting laser, the OPI-3301 efficiently reads a wide range of 1D and 2D barcodes—even those on mobile screens or poorly printed labels. With up to 10 hours of continuous use per charge and robust durability (1.5m drop resistance), it’s built to handle high-volume scanning with ease.

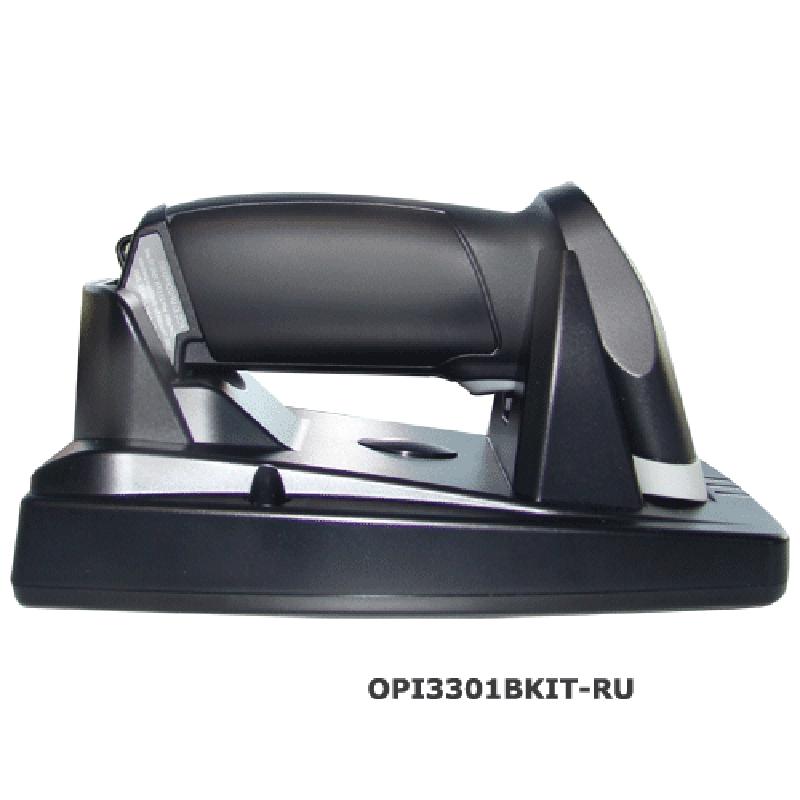

This bundle includes the CRD3301 communication/charging cradle, along with RS232 and USB interface cables, ensuring flexible connectivity options and efficient charging whether at the point of sale or on the warehouse floor.
Product Features
-
2D CMOS Imager with Auto-Focus – Reads 1D/2D barcodes including PDF417, QR, Data Matrix, Aztec, postal codes, and more
-
Bluetooth 2.0 Wireless Communication – Reliable range up to 10 metres with secure pairing (SPP profile, Master/Slave modes)
-
Rechargeable Lithium-Ion Battery – 1100mAh capacity supports approx. 10 hours of continuous scanning (1 scan every 5 seconds)
-
Charging Cradle Included – Enables wireless communication and contact-based charging via RS232 or USB
-
Fast & Accurate Scanning – CMOS sensor (900 x 512 pixels), up to 80 fps scan rate, 0.127 mm minimum resolution
-
Multiple Output Formats – Supports bitmap (BMP) and JPEG image capture
-
Built for Durability – Withstands 1.5m drops onto concrete, IP42 protection against dust and moisture
Product Specifications
Model | Opticon OPI-3301 |
Scanner Type | 2D CMOS Imager with Auto-Focus |
Connectivity | Bluetooth 2.0, SPP profile (up to 10m range) |
Charging Method | Via CRD3301 Communication Cradle (USB or RS232) |
Battery | 3.7V, 1100mAh Lithium-Ion rechargeable |
Environmental Sealing | IP42 – protected against dust & light splashes |
Drop Resistance | 1.5 m (5 ft) onto concrete |
Ambient Light Tolerance | Up to 100,000 lux |
Dimensions (WxHxD) | 56 x 137 x 113 mm |
Weight | Approx. 110g |
Features
- 42
- Standard
- Handheld
- Cordless
- USB
- Serial / RS232
- Black
