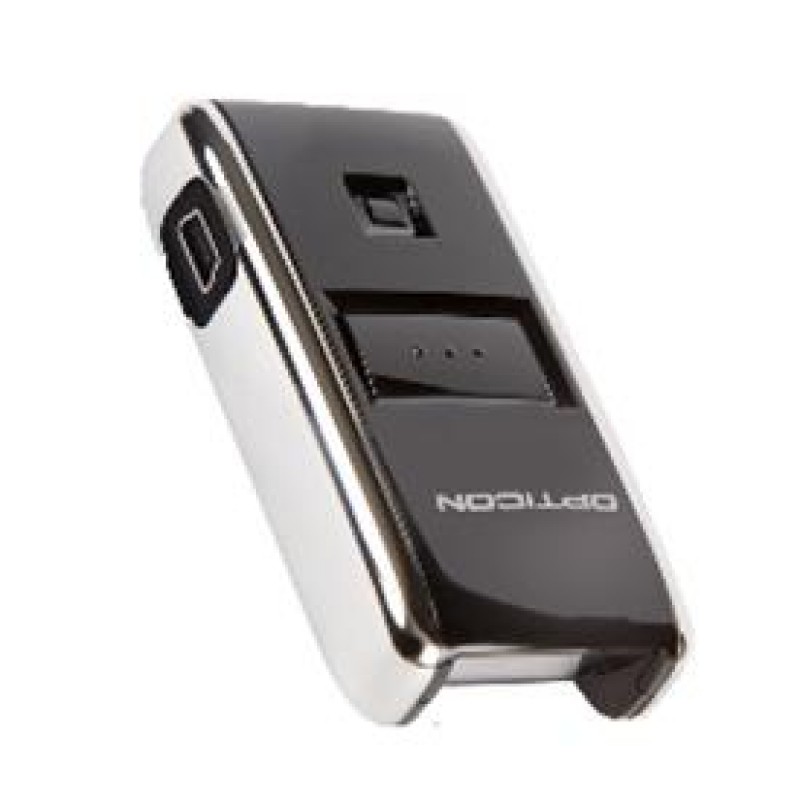

Opticon OPN-2006 Pocket Bluetooth Laser Data Collector

42, 2D, Standard, Handheld, Cordless, USB, Bluetooth, Black, Opticon
$269.00
For Special & Volume Pricing - Call +61 489 087 085
OPN2006BT-U
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon OPN-2006 is an ultra-compact, high-performance Bluetooth barcode scanner designed for mobility, efficiency, and reliability. Weighing just 29g, it fits easily in your pocket, making it the ideal choice for field data collection, retail inventory, and healthcare applications.This smart scanner is capable of real-time wireless data transmission via Bluetooth 3.0 or storing scans for later batch upload. It supports all common 1D barcode symbologies, and its high-speed laser engine ensures accurate and rapid scanning up to 100 scans per second. Whether you're scanning product tags, barcoded tickets, or postal codes, the OPN-2006 delivers smooth and precise performance.Fully programmable and supported by free SDK tools, it also suits custom application development. With up to 3500 Bluetooth scans per charge and IP42 durability, this versatile scanner is built for long-lasting, professional-grade performance.


Product Features

  • Compact & lightweight design (just 29g) – perfect for mobile or wearable use
  • Bluetooth 3.0 connectivity (SPP/HID), master & slave mode with encryption
  • High-speed 1D laser scanning (100 scans/second)
  • Stores up to 4500 scans in batch mode
  • Rechargeable Li-ion battery offers up to 3500 Bluetooth scans per charge
  • Programmable scanner – SDK included for custom applications
  • Drop tested to 1.5m on concrete; IP42 protection against dust & moisture
  • Includes USB cable and neck strap for easy charging and portability
  • Complies with CE, FCC, RoHS, FDA, and Class 2 laser safety standards


    Product Specification

    Model

    Opticon OPN-2006

    Scanner Type

    1D Laser Barcode Scanner

    Scan Rate

    100 scans/second

    Light Source

    650 nm visible laser diode

    Memory

    512 kB FlashROM + 1 MB external FlashROM

    Battery

    3.7V 240mAh Lithium-Ion rechargeable

    Battery Life

    3500 scans (Bluetooth mode), 4500 scans (batch mode)

    Charging Method

    Via USB cable

    Connectivity

    Bluetooth 3.0 (SPP, HID); USB 1.1 (VCP)

    Dimensions

    32 x 62 x 16 mm

    Weight

    29 g (with battery)

    Protection Rating

    IP42

    Features

    IP Rating:
    • 42
    Scan Engine:
    2D
    Scan Range:
    • Standard
    Form Factor:
    • Handheld
    Connectivity:
    • Cordless
    Interface:
    • USB
    • Bluetooth
    Color:
    • Black
    Manufacturer
    :
    Opticon

    Attachments

    Brochure (opn2006bt_brochure.pdf, 142 Kb) [Download]
