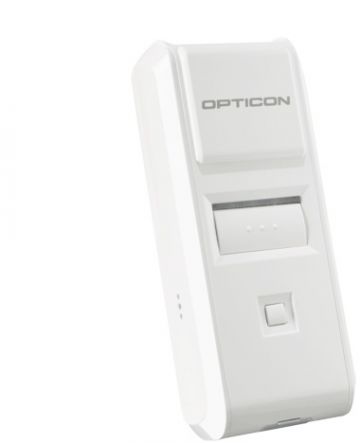

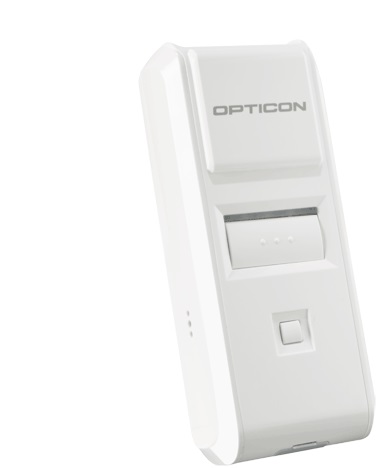

OPTICON OPN4000n BT CCD Linear Scanner white

1D, Standard, Handheld, Cordless, USB, Bluetooth, White, Opticon
$255.00
For Special & Volume Pricing - Call +61 2 9090 4610
OPN4000n
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Opticon OPN-4000n is an ultra-compact, lightweight CCD data collector designed for fast, reliable 1D barcode scanning in mobile applications. With built-in Bluetooth 2.1 connectivity and USB interface, it’s ideal for businesses seeking wireless barcode data capture on-the-go—from retail and inventory management to field operations and asset tracking.

Despite its small size, the OPN-4000n delivers high-speed scanning, a long-lasting 25-hour battery life, and seamless pairing with smartphones, tablets, and PCs. It captures even low-contrast barcodes with a 1500-pixel CCD sensor and supports an extensive range of 1D symbologies. The included USB cable also allows easy charging and data transfer when wireless isn’t required.

Whether worn with the neck strap or pocketed, this 1D barcode data collector is engineered for efficiency, comfort, and mobility. It's also rugged enough to survive 1.2-metre drops and has excellent ambient light immunity, making it suitable for both indoor and outdoor use.

Product Features

  • CCD linear scanning with high-speed data capture

  • Bluetooth 2.1 wireless connectivity with HID and SPP support

  • USB interface for charging and data transfer

  • Long-lasting 25-hour battery life (2 scans every 10 seconds over Bluetooth)

  • Compact, ultra-lightweight design – just 53g including battery

  • Durable construction – withstands 1.2m drops onto concrete

  • Extensive symbology support including all major 1D barcodes and postal codes

  • Easy operation with scan and function buttons

  • Real-time clock for timestamped scanning

  • Enclosed USB cable and neck strap included

Product Specifications

Model

Opticon OPN-4000n

Scanner Type

1D CCD Data Collector

Connectivity

Bluetooth 2.1 (SPP, HID), USB mini (HID/VCP)

Scan Method

CCD linear sensor, 1500 pixels

Light Source

Red LED

Scan Rate

High-speed (up to 100 scans/sec)

Dimensions

36 x 83 x 21.5 mm (W x H x D)

Weight

Approx. 53 g (incl. battery)

Indicators

LED (red/green/blue) + buzzer

Regulatory Compliance

CE, FCC, RoHS, VCCI, IEC62471-1, EN60950-1, EN55022, EN301489

Included Accessories

USB cable, neck strap



Features

Scan Engine:
1D
Scan Range:
  • Standard
Form Factor:
  • Handheld
Connectivity:
  • Cordless
Interface:
  • USB
  • Bluetooth
Color:
  • White
Manufacturer
:
Opticon

Attachments

Brochure (opn4000n_brochure.pdf, 63 Kb) [Download]
