Description

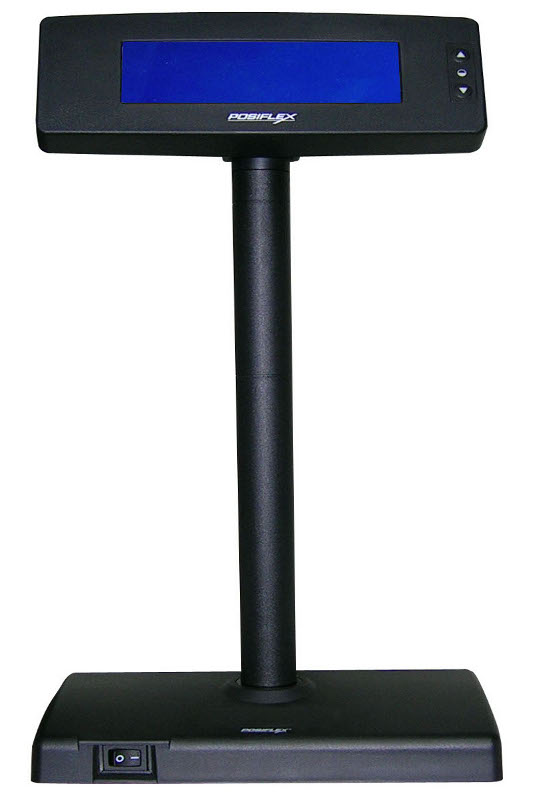

The PD-7600 is a stand alone pole mount customer display designed for discrete POS applications. The PD-7600 series utilizes a graphical LCD module with backlight. It supports 4 rows display of 15 Chinese or 30 Arabic characters each in format of 16 by 16 dots or 8 by 16 dots respectively.
Main Features :
- Graphic STN LCD Display
- Blue background with white backlight
- 4 Line display with 15 Arabic or 15 Characters per line
- The display panel is movable so that it can be adjusted for the best viewing angle.
- Rotates 270º
- Adjustable height.
- RS232 interface
- Simplified Chinese Character set
- Supports ESC/POS commands
Features
Attachments
Specifications
|
Specifications |
PF 7600 |
|
Display Type |
Graphic STN LCD Display Blue BAckgroung with white back light |
|
Display pattern |
240 x 64 Dots |
|
Viewing Angle |
15, 30 and 45° |
|
Horizontal rotating Angle |
Max. 270° |
|
Font Size |
4.24(W) x 8.47(H) mm |
|
Character Number |
20 x 2 for 5 x 7 font |
|
Character |
PD7610 - Simplified Chinese PD7620 - Traditional Chinese PD7630 - Arabic, windows code page 01256 |
|
Interface |
RS-232 |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
10 ~ 90% |
*Specifications are subject to change without notice
