Description

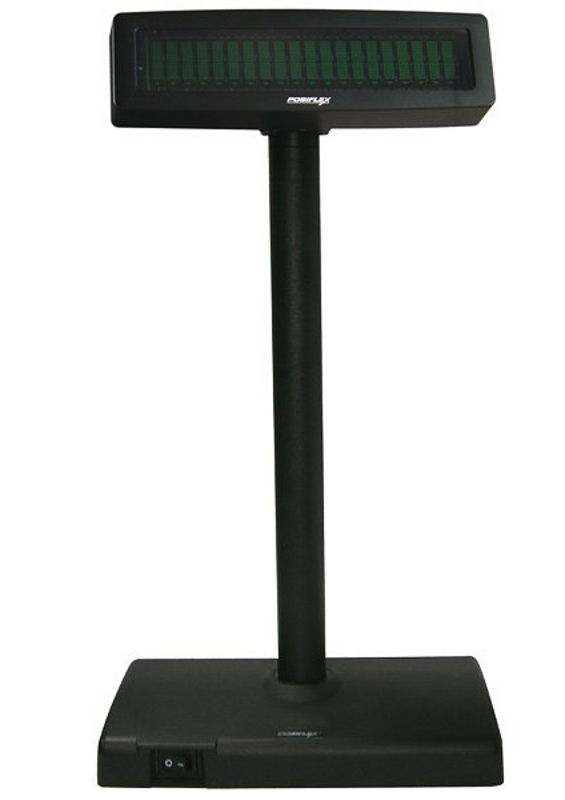

The PD-2600 is a stand alone pole mount customer display designed for POS applications. It has a bright VFD Display, 2 lines with 20 Characters. Also available with mounting options for Posiflex Touch Systems.
Main Features :
- Vacuum Fluorescent Display with display 20 columns and 2 lines
- Blue or green fluorescent colour is easy on the eyes
- The display panel is movable so that it can be adjusted for the best viewing angle
- Rotates 270ยบ
- Adjustable height.
- USB or RS232 interface
- Supports 12 code pages
- The user-defined and international character sets are standard
Features
Attachments
Specifications
|
Specifications |
PD-2600 Series |
|
Display Type |
Vacuum Fluorescent Display |
|
Display pattern |
5 x 7 Dot Matrix |
|
Brightness |
350 cd/m² |
|
Viewing Angle |
15, 30 and 45° |
|
Horizontal rotating Angle |
Max. 270° |
|
Font Size |
5.25(W) x 9.03(H) mm |
|
Character Number |
20 x 2 for 5 x 7 font |
|
Character |
12 code pages of 128 characters each |
|
Interface |
RS-232 or USB interface |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
10 ~ 90% |
|
Dimension (Panel) |
196.6 x 57.5 x 39.5 mm |
|
Dimension |
410 mm (H) |
|
Dimension |
220 mm (W) x 110 mm (D) x 27 mm (H) |
|
Weight |
0.8 Kg |
*Specifications are subject to change without notice
