Description

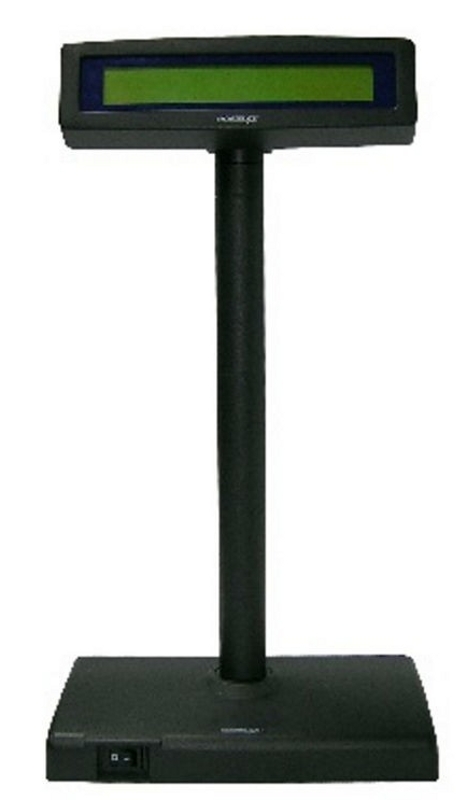

The PD 300B-U is a stand alone pole mount customer display designed for POS applications. It has a black 2 line 20 character Pole Display, USB Interface.
Main Features :
- LCD Display with display 20 columns and 2 lines
- Dark Blue character with yellow green back light
- The display panel is movable so that it can be adjusted for the best viewing angle.
- Rotates 270º
- Adjustable height.
- USB or RS232 interface
- Supports 12 code pages
- The user-defined and international character sets
Features
Attachments
Specifications
|
Specifications |
PD-300 Series |
|
Display Type |
LCD, STN positive transflective with back light |
|
Active display area |
142.8 x 20.64 mm |
|
Brightness |
150 cd/m² |
|
Viewing Angle |
15, 30 and 45° (PD300/306~310) 0 - 90° (PD303/305) |
|
Horizontal rotating Angle |
Max. 270° |
|
Font Size |
6 (W) x 9.66(H) mm |
|
Character Pitch |
7.2 x 10.98 mm |
|
DOT Size |
1.12 x 1.12 mm |
|
DOT Pitch |
1.22 x 1.22 mm |
|
Character Number |
20 digits/row, 2 rows |
|
Character |
12 code pages of 128 characters each |
|
Interface |
RS-232 or USB interface |
|
Operating Temperature |
0 ~ 50 ºC |
|
Operating Humidity |
10 ~ 90% |
|
Dimension (Panel) |
196.7 x 57.5 x 39.6 mm (PD300/306~308 217 x 80.5 x 28.5 mm (PD302/303/305) |
|
Pole Height |
200 mm (PD300/306~308) |
|
Dimension |
220 mm (W) x 110 mm (D) x 27 mm (H) |
|
Input Voltage |
+5V |
|
Power Consumption |
500 mA max. |
*Specifications are subject to change without notice
