Portable Data Terminals : CipherLab 8001 Series DOS Portable Data Terminal

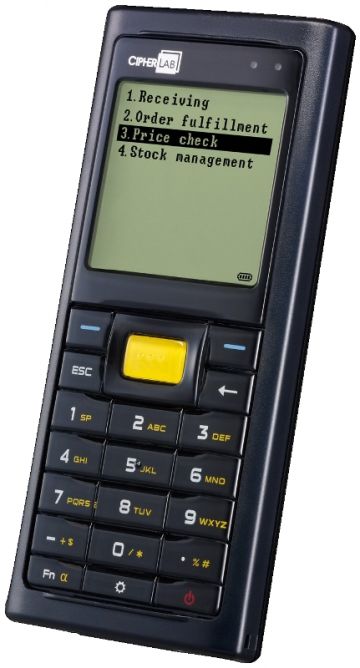

CipherLab 8001
$783.75 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

Main Features:

  • Unbeatable value in a small, handheld AIDC computer
  • 8000 runs on two AAA batteries/8001 runs on a rechargeable Li-Ion battery - for over 100 continuous hours between charges
  • Easy to install, lightweight, and cost-effective
  • Infrared communications or cradle for batch data uploads
  • Choice of linear imager or laser reader
  • User-friendly interface and easy-to-read backlit LCD screen
  • Supports a variety of C and BASIC programming
  • CipherLab Application Generator enables custom applications





Attachments

CipherLab 8001 series (cipherlab8001.pdf, 779 Kb) [Download]

Specifications

Specifications

CipherLab 8001 series

Processor

CPU:16-bit CMOS , low power consumption

Programmable features: C-Compiler (MS-DOS) , Basic-Compiler (Windows IDE) , Application Generator (Windows)



Communication

USB , IrDA , RS232 up to 115200 bps, Serial IR (up to 115200 bps)

Memory

2 MB , 4 MB

Keypad

21 keys

Weight

180 g (include battery)

Display

Resolution: 0.125 ~ 1.00 mm

Main battery pack operating time

100h

Dimensions

Width: 56mm, Height: 120mm, Length: 25mm

Operating Temperature

-20 °C to 60 °C

*Specifications are subject to change without notice
