Description

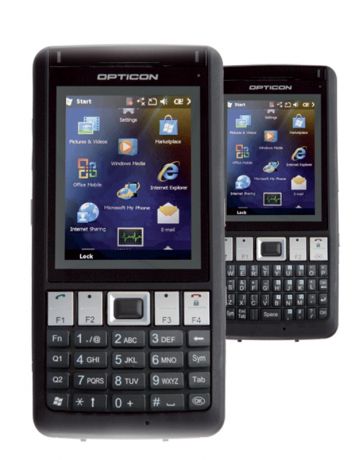

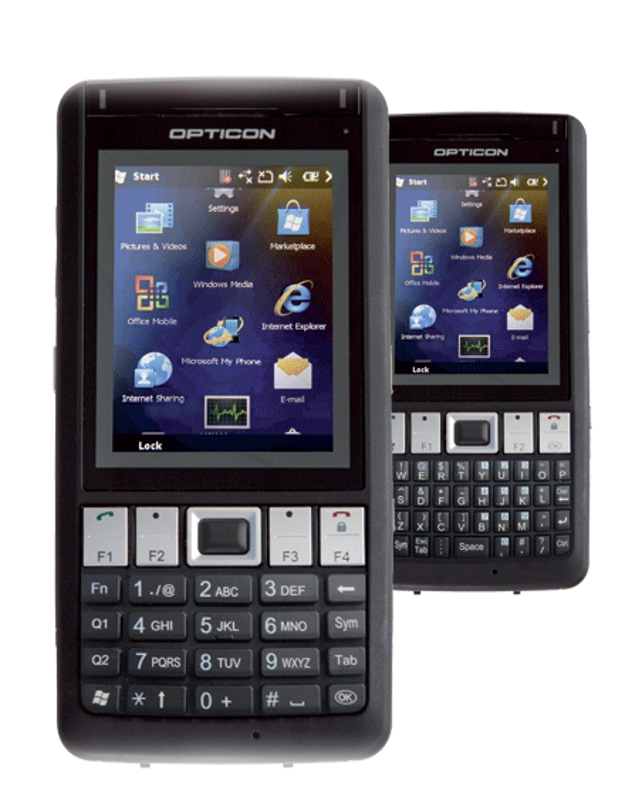

The Opticon OPH21N-1D is a rugged mobile computer built for logistics, courier services, field sales, and facility management. Featuring a numeric keypad for efficient data entry, it runs on Microsoft Windows Mobile 6.5 and integrates a high-speed 1D laser scanner. With a 2.8" touch display, 3.2MP autofocus camera, and AGPS module, it enables barcode capture, image documentation, and location tracking in real time.Engineered with IP64 protection and tested against 1.5m drops.
Product Features
- 1D laser scanner with 100 scans per second for fast barcode reading.
- Numeric keypad for simple and quick data entry.
- Windows Mobile 6.5 OS with Office Mobile, Outlook, Internet Explorer, and ActiveSync.
- 3.2MP autofocus camera with flash for image capture, signatures, and documentation.
- AGPS module for real-time location tracking and geo-tagging.
- 3G/3.5G cellular, Wi-Fi, Bluetooth
Product Specifications
Model | OPH21N-1D |
Operating System | Microsoft Windows Mobile 6.5 |
Processor | Qualcomm MSM7225, 528 MHz |
Scanner | 1D laser scanner, 100 scans/sec |
Camera | 3.2MP autofocus with LED flash |
Battery | 3060mAh Li-ion + backup battery |
Durability | 1.5m drop, IP64 |
Dimensions | 67 × 135 × 22 mm |
Weight | 235g |
Features
Camera:
- 3.2MP Rear camera+Auto focus
Display Size:
- 2.8"
Keyboard:
- Numeric
- Qwerty
Operating System:
- Windows
Processor:
- Qualcomm MSM7225 528 Mhz
Scan Engine:
1D
Connectivity:
- Bluetooth
- GPS
- WiFi
Attachments
Specifications
|
Specifications |
OPH21N/Q-1D |
|
Processor |
CPU:Qualcomm MSM 7225 528Mhz O/S: Microsoft® Windows Mobile® 6.5 |
|
Symbologies support |
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of 5, ISBN-ISMN-ISSN, Matrix 2of 5, MSI/Plessey,S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Composite Codes, MicroPDF417, PDF417 |
|
Memory |
Expansion:User accessible microSD + HC Flash Memory:256 MB flash ROM RAM Memory: 256 MB SRAM |
|
Keypad |
Navigation Key (Scroll & Select), function Keys, Control Keys, 1 Power Key, 2 hot Keys, 2 Phone Keys, 1 Camera Key, Reset Key, Volume Key, 2 Scan keys and 12 Alpha/Numeric keys or QWERTY Keyboard
|
|
Operating Temperature |
-10°C to 50°C |
|
Display |
Graphic Transflective TFT LCD with touch panel, 16-bit colour with adjustable backlight Size: 2.8”, 480 x 640 pixels Mode: Portrait / Landscape
|
|
Weight |
235 g (including batteries) |
|
Dimensions |
135 x 67 x 22 mm |
|
Regulatory & Safety |
Product compliance: CE, FCC, VCCI, PTCRB, GCF, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
*Specifications are subject to change without notice.
