Description

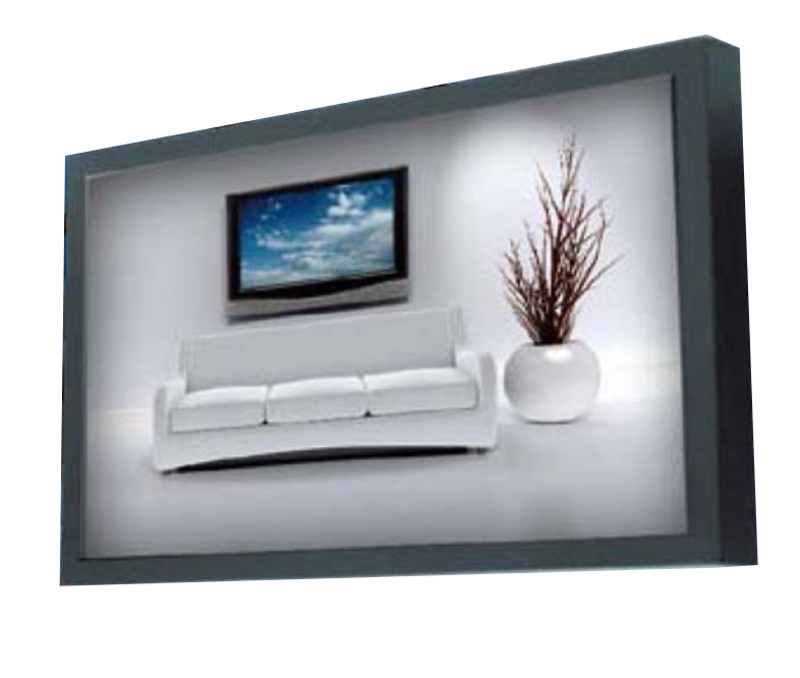

Goodson GM42L Series CCTV TFT LCD Monitor.
Features:
- 42" Wide CCTV TFT LCD Monitor
- Metal Cabinet
- Extra Wide Viewing angle
- Adaptive 3D Comb Filter for life like and sharp images
- NTSC / PAL Auto Recognition
- VESA standard mounting holes
- OSD Multi-language Support
- Security Applications: suports 2 BNC input/output terminal for video equipment
Attachments
Specifications
|
Viewing Area |
42" Active Matrix TFT LCD |
|
Resolution |
500 TVL/1366 x 768 (WXGA) |
|
Contrast Ratio |
1200:1 |
|
Brightness |
500 cd/m² |
|
Display Colours |
16.7 million |
|
Response Time |
8 ms |
|
View Angle L/R |
178º / 178º |
|
View Angle U/D |
178º / 178º |
|
Lamp Life time |
60,000 hrs |
|
Display mode |
VGA, DVI, S-Video, Composite 1, Composite 2 & Component Video |
|
Signal Connector |
Input: BNC x2, S-Video x1, VGA (15 pin D-Sub) x1, DVI x1, YPbPr x1 Output: BNC x2, S-Video x1 |
|
Audio |
Speaker 5W |
|
Audio Connector |
Input: RCA Audio x1, PC Audio x1 Output: RCA Audio x1 |
|
Touch Panel (option) |
SAW Touch Screen |
|
Touch Interface |
USB or RS232 |
|
Power Supply |
External Power Adapter AC 100~240V, 50/60Hz, 0.5A |
|
Consumption (Max) |
250 W (Max.) |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
20 ~ 80% |
|
External Dimensions (W x D x H) |
993.2 x 126 x 596.7 mm (without stand or Wall Bracket) |
|
EMC/Safety Standards |
CE (EMC/LVD), FCC, UL, CUL, CB, CCC, C-Tick |
