Description

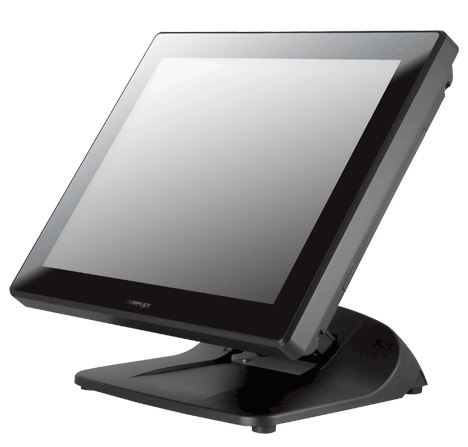

The POSIFLEX PS-3615 is a robust and stylish 15-inch PCAP touch POS terminal designed to deliver efficient performance and reliability in demanding retail and hospitality environments. Powered by an Intel Celeron J3455 Quad-Core processor, 8GB DDR3L RAM, and a 128GB M.2 SSD, this fanless system offers silent operation and low power consumption, ideal for front-of-house applications.
With a 1024 x 768 resolution LCD and true-flat projected capacitive (PCAP) touchscreen, the PS-3615 delivers crisp visuals and multi-touch responsiveness in a sleek, modern design. The GEN7 slimline base optimises space while supporting a wide tilt angle for versatile installation and ergonomic comfort.
Extensive I/O ports, optional peripheral support, and preloaded Windows 10 IoT LTSC 2021 make the PS-3615 a future-ready terminal for any point-of-sale setup.
Product Features
- Intel Celeron J3455 Quad-Core processor, up to 2.3GHz
- 8GB DDR3L RAM, upgradeable to 8GB
- 128GB M.2 SSD for fast boot and data access
- 15-inch TFT LCD display, 1024 x 768 resolution
- True-flat PCAP multi-touch screen with USB interface
- Fanless design for silent, dust-free operation
- GEN7 slimline base with 15° to 90° tilt adjustment
- Comprehensive connectivity including 4 x serial ports, 5 x USB ports, LAN, VGA, and cash drawer
- Windows 10 IoT Enterprise LTSC 2021 pre-installed
Product Specifications
Specification | Details |
Model | POSIFLEX PS-3615 |
Part Number | PFPS3615J-80128M2E |
Processor | Intel Apollo Lake Celeron J3455, up to 2.3GHz, 2M Cache |
Memory | 8GB DDR3L RAM (SO-DIMM socket, max 8GB) |
Storage | 128GB M.2 SSD (Upgradeable) |
Display | 15” TFT LCD, 1024 x 768 resolution |
Touch Technology | True-flat Projected Capacitive (PCAP) Multi-Touch |
Tilt Angle | Adjustable from 15° to 90° |
Operating System | Windows 10 IoT Enterprise LTSC 2021 |
I/O Ports | 4 x COM (RS-232), 5 x USB (1 x USB 3.0, 4 x USB 2.0), 1 x VGA (12V out), 1 x RJ45 LAN, 1 x cash drawer port, 1 x proprietary USB |
Audio | Buzzer, 2W internal speaker |
M.2 Expansion | 1 x M.2 port for SSD or other modules |
Networking | Gigabit Ethernet (10/100/1000 Mb) |
Power Supply | 12V DC 40W Adapter (84W optional with 2nd display) |
Environmental | Operating: 0°C to +50°C; Storage: -20°C to +70°C |
Dimensions (W x D x H) | 372mm x 320mm x 252.7mm |
Weight | 5.86kg |
Mounting | Desktop via GEN7 base |
Warranty | 3 Years Return to Base |
Features
Colour:
- Black
Display:
- Single
Interface:
- Serial
- USB
- VGA
Magstripe Option:
- No
OS Compatability:
- Windows
Printer:
- No
Processor:
- Intel Celeron
Ram:
- 8 GB
Screen Size Font:
- 15 inch
Storage Capacity:
- 128GB
Storage Type:
- SSD
Terminal Type:
- Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years
