Description

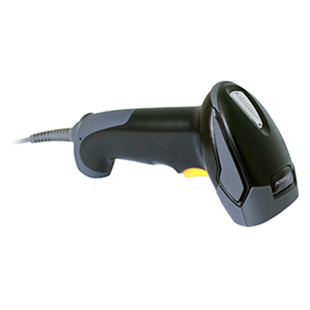

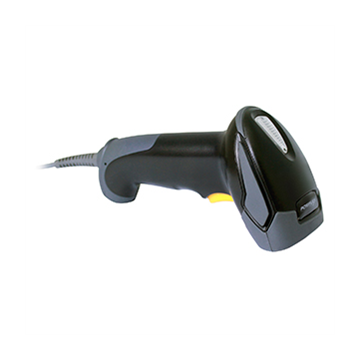

The POSIFLEX CD-3870 is a high-performance long-range 1D CCD barcode scanner designed for retail, warehousing, and logistics environments where speed and accuracy are essential. With a depth of field up to 500 mm, a scan rate of 270 scans per second, and support for multiple barcode symbologies, this corded handheld scanner delivers reliable, lightning-fast performance even in demanding applications.Equipped with a visible red LED light source, the CD-3870 ensures precise scanning across a wide 45° scan angle and a 250 mm scan width. It reads high-density barcodes down to 3 mil resolution, making it ideal for applications requiring exceptional detail. This rugged device withstands multiple 1.5-metre drops to concrete, ensuring long-term durability in busy POS environments.
Product Features
- Long-range 1D CCD scan engine
- Up to 500 mm depth of field
- High-speed scanning at 270 scans/second
- Supports ultra-fine barcodes (3 mil resolution)
- Wide scan angle of 45°
- Drop resistant to 1.5 metres
- Supports major 1D barcode symbologies including Code 39, Code 128, EAN/UPC, and more
- LED indicator and programmable beeper for intuitive user feedback
- Interfaces: USB HID, USB Virtual COM, RS232
Product Specifications
Scan Engine | Long Range 1D CCD Scanner |
Light Source | Visible Red LED |
Scan Pattern | Single Line |
Scan Rate | 270 scans/sec |
Resolution | 0.075 mm (3 mil) |
Depth of Field | 20 – 500 mm (Code 39, 20 mils, PCS90%) |
Scan Width | Up to 250 mm |
Scan Angle | 45° |
Supported Symbologies | Code 39, Code 128, Code 93, UPC, EAN, Codabar, ITF, MSI, Telepen, RSS, and more |
Programming | Barcode command-based |
Indicators | LED + Programmable Beeper |
Interfaces | USB HID, USB Virtual COM, RS232 |
Supply Voltage | DC +5V ±10>% |
Drop Resistance | 1.5 metres (onto concrete) |
Dimensions (WxDxH) | 60 x 130 x 160 mm |
Weight | 120 g (excluding cable) |
