Description

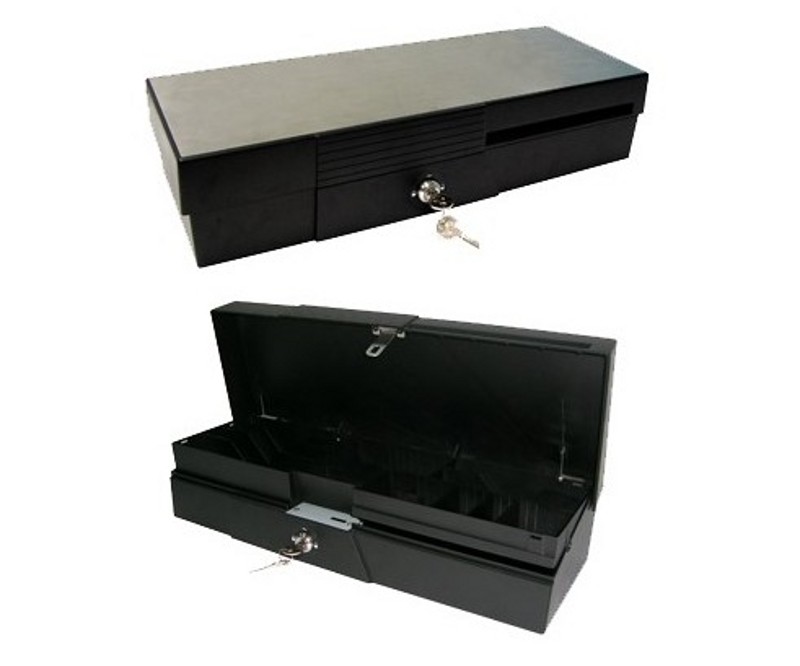

The 2210 series is a flip-top type cash drawer. The CR-2210 series has a Aluminium die-cast base and wear-proof Aluminium die-cast top. This CR-2210 series provides 8 coin and 6 bill compartments. Has RJ12 connector, so cables can be made to length as required.
Main Features :
- Heavy Duty Cast Aluminium Construction
- 3 Position Key Lock
- Space Saving Concept
- 1 Media Slots
- 6 Note/8 Coin, C
- Vertical Note Holders
- Lockable Lid Included
- RJ12 Modular solenoid kick out connector or Interface versions available
- 10~30V Solenoid standard
- 460mm (W) x 175mm (D) x 102mm (H)
Attachments
Specifications
|
MECHANICAL: |
Dimensions: |
|
|
460 (W) x 195(D) x 101.5 (H) mm |
|
|
18.2” (W) x 7.7” (D) x 4.0” (H) |
|
|
Weight: 4.3 Kg |
|
|
Removable tray with a lock-on cover (option) |
|
ELECTRICAL: |
|
|
Power Source |
|
|
Solenoid Drive |
(for CR-2210) |
|
Pulse Amplitude |
12 to 24 VDC |
|
Pulse Width |
100 to 250 msec |
|
Pulse Duty Cycle |
10% max |
|
Max. Current Consumption |
0.75A @ 12 VDC / 1A @ 24 VDC |
|
AC Adaptor (for CR 2214/2215) |
|
|
Input Voltage |
120 VAC ± 10 % / 240 VAC ± 10 % @50 -60 Hz |
|
Output Voltage |
12 VAC at 1.5 A |
