Description

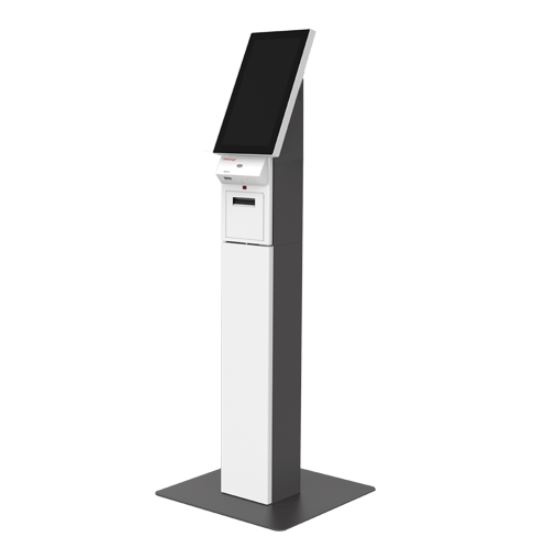

The POSIFLEX EK-1630 is a compact 15.6-inch self-service kiosk designed for customer check-in, ordering, ticketing, and payment applications in retail, hospitality, and public venues. Equipped with an Intel Celeron J1900 quad-core processor and Windows 10 IoT LTSC, it offers stable and reliable performance for mission-critical operations.
Featuring a full HD projected capacitive multi-touch display, integrated 3” high-speed thermal printer, 2D barcode scanner, wide-angle camera, and proximity sensor, the EK-1630 delivers a complete self-service solution straight out of the box. Its slim pedestal design is space-efficient, and the front-access serviceability makes maintenance quick and easy.
Available in portrait or landscape orientations, the EK-1630 also supports optional peripherals such as NFC/RFID readers, fingerprint scanners, and 4G modules to adapt to diverse business needs.
Product Features
- 15.6” Full HD display with responsive PCAP multi-touch.
- Intel® Celeron® J1900 quad-core CPU (up to 2.42GHz).
- 4GB DDR3L RAM, upgradeable to 8GB.
- 64GB SSD for fast boot and data storage.
- Integrated 3” thermal printer (200mm/sec).
- Built-in wide-angle camera and proximity sensor.
- 2D barcode scanner included.
- Slim pedestal design for space-saving installation.
- Portrait or landscape configurations available.
- Modular options: NFC/RFID reader, fingerprint reader, 4G connectivity.
Product Specifications
Specification | Details |
Display | 15.6” TFT LED, 1920 x 1080 resolution |
Touch Technology | Projected Capacitive (multi-touch) |
Processor | Intel® Celeron® J1900, quad-core, 2.0–2.42GHz |
Memory | 4GB DDR3L 800MHz (max 8GB) |
Storage | 64GB SSD (upgradeable) |
Printer | Integrated 3” thermal printer (200mm/sec) |
Scanner | Integrated 2D barcode scanner |
Camera | Built-in 1MP wide-angle camera |
Proximity Sensor | 60–100cm detection range |
Connectivity Ports | RS-232 x6 (3 x DB9, 1 x RJ50), USB 3.0 x1, USB 2.0 x7, HDMI x1, Gigabit Ethernet x1, M.2 slot |
Audio | Internal 3W speakers x2 |
Operating System | Windows 10 IoT LTSC (other OS on request) |
Networking | LAN, Wi-Fi (via M.2 module) |
Mounting Options | Pedestal (included), countertop available |
Dimensions | Portrait pedestal: 500 x 500 x 1420 mm |
Weight | 30.4 kg (pedestal) |
Warranty | Manufacturer standard |
Applications | Ordering, ticketing, check-in, payment kiosk |
Features
- Black
- Single
- Ethernet
- HDMI
- Serial
- USB
- No
- Windows 10 IOT
- Yes
- Intel Celeron
- 4 GB
- Yes
- 15.6 inch
- 64GB
- SSD
- Kiosk
