Description

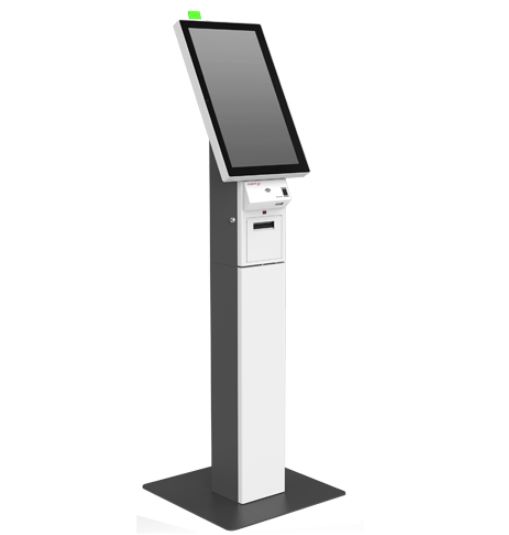

The POSIFLEX EK-2110 is a stylish and robust 21.5-inch Android self-service kiosk designed for high-traffic environments such as retail, hospitality, QSR, and public services. Its slim portrait design (also available in landscape) and integrated 3” high-speed printer make it an ideal space-saving solution for order processing, ticketing, and check-in applications.
Powered by the Rockchip RK3399 processor with a dual-core Cortex-A72 and quad-core Cortex-A53 architecture, the EK-2110 delivers smooth performance for interactive applications. It comes standard with 2GB DDR4 RAM (upgradeable to 4GB) and 16GB eMMC storage (expandable to 32GB via microSD).
The kiosk includes a 1MP wide-angle camera, proximity sensor, and 2D barcode scanner for versatile customer interactions. Connectivity options include Wi-Fi, Ethernet, multiple USB ports, HDMI output, and RS-232 serial ports for peripherals.
Designed for easy maintenance with all serviceable components accessible from the front, the EK-2110 is available as a countertop or floorstanding unit with pedestal, and offers optional add-ons such as NFC/RFID readers, fingerprint scanners, and 4G modules.
Product Features
- 21.5” Full HD display with true-flat projected capacitive multi-touch.
- Rockchip RK3399 CPU – Dual-core Cortex-A72 + Quad-core Cortex-A53.
- 2GB DDR4 RAM, upgradeable to 4GB.
- 16GB eMMC storage, expandable to 32GB via microSD.
- Integrated 3” thermal printer with 200mm/sec printing speed.
- Built-in 1MP wide-angle camera and proximity sensor.
- Standard 2D barcode scanner and Wi-Fi connectivity.
- Portrait or landscape orientation options.
- Modular design for optional peripherals such as NFC, fingerprint reader, and 4G.
- Front-access servicing for minimal downtime.
- Available in countertop or floorstanding configurations.
Product Specifications
Specification | Details |
Display | 21.5” TFT LED, 1920 x 1080 resolution |
Touch Technology | Projected Capacitive (multi-touch) |
Processor | Rockchip RK3399 – Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.4GHz |
Memory | 2GB DDR4 (upgradeable to 4GB) |
Storage | 16GB eMMC (expandable to 32GB via microSD) |
Printer | Integrated 3” thermal printer, 200mm/sec |
Scanner | 2D barcode scanner (standard) |
Camera | 1MP wide-angle |
Proximity Sensor | 60–100 cm detection range |
Connectivity Ports | RS-232 x2 (RJ50), USB 3.0 x1, USB 2.0 x5, Micro USB OTG x1, HDMI x1, Gigabit Ethernet x1, Fast Ethernet x1, M.2 slot |
Audio | Internal 3W speakers x2 |
Operating System | Android 9.0 |
Networking | Wi-Fi (via USB dongle), Ethernet |
Power Supply | Internal 12V/60W + 24V/60W |
Mounting Options | Countertop or floorstanding pedestal |
Dimensions (Portrait) | Countertop: 395 x 395 x 774 mm; Floorstanding: 500 x 500 x 1546 mm |
Dimensions (Landscape) | Countertop: 540 x 395 x 588 mm; Floorstanding: 540 x 500 x 1362 mm |
Weight | Countertop: 22.6 kg; Floorstanding: 34.8 kg |
Warranty | Manufacturer standard |
Applications | Self-ordering, ticketing, registration, payments |
Features
- Black
- Single
- Ethernet
- HDMI
- Serial
- USB
- No
- Android 9
- Yes
- Rockchip RK3399
- 2 GB
- Yes
- 21.5 inch
- 16GB
- eMMC
- Kiosk
