Description

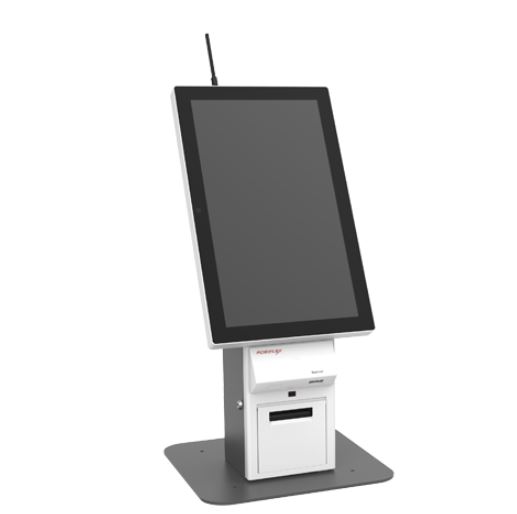

The POSIFLEX EK-2130 21.5” Kiosk is a modern, fully-featured self-service terminal designed for Australian businesses seeking a ready-to-use Windows solution. Powered by the Intel® Bay Trail J1900 quad-core processor, this kiosk delivers dependable performance for retail, hospitality, ticketing, and public service applications.
With Windows 10 IoT LTSC preloaded, the EK-2130 offers immediate deployment with enterprise-grade stability. Its true-flat 21.5” Full HD PCAP touchscreen provides a premium user interface, while the integrated 3” thermal printer, wide-angle camera, and proximity sensor make it ideal for self-check-in, ordering, and information point systems.
The built-in 2D barcode scanner and WiFi connectivity ensure versatile usage across wired and wireless environments. Its modular design supports future add-ons such as NFC/RFID readers, fingerprint scanners, and 4G modules. Available in both portrait and landscape layouts, and configurable as a countertop or freestanding kiosk, the EK-2130 is built for high-volume, customer-facing environments.
Product Features
- 21.5” Full HD TFT LED backlit display with PCAP multi-touch.
- Intel® Bay Trail J1900 quad-core CPU, up to 2.42GHz with 2M cache.
- 4GB DDR3L RAM (expandable to 8GB).
- 64GB SSD storage, upgradeable to larger capacities.
- Windows 10 IoT LTSC preloaded for instant deployment.
- Integrated 3” high-speed thermal printer (200mm/sec).
- Built-in 1MP wide-angle camera and proximity sensor.
- 2D barcode scanner and WiFi module included.
- Multiple I/O options including HDMI, USB, RS-232, and dual Ethernet ports.
- Portrait or landscape orientation available from factory.
- Designed for countertop or floor-standing configurations.
Product Specifications
Specification | Details |
Display | 21.5” TFT LED Backlit LCD, 1920 x 1080 resolution |
Touch Technology | True-flat PCAP multi-touch |
Processor | Intel® Bay Trail Celeron™ J1900 Quad Core, 2.0–2.42GHz, 2M cache |
Memory | 4GB DDR3L (max 8GB) |
Storage | 64GB SSD (upgradeable) |
Printer | Integrated 3” thermal printer, 200mm/sec |
Scanner | 2D barcode scanner |
Camera | 1MP wide-angle |
Sensors | Proximity sensor, 60–100cm range |
Connectivity | WiFi/BT module, Dual Ethernet ports |
Ports | 6 x RS-232, 8 x USB (1 x USB3.0, 7 x USB2.0), 1 x HDMI |
Audio | Internal 3W speaker x 2 |
OS Support | Windows 10 IoT LTSC preloaded |
Dimensions (Portrait) | Countertop: 395 x 395 x 774 mm / Floor-standing: 500 x 500 x 1546 mm |
Dimensions (Landscape) | Countertop: 540 x 395 x 588 mm / Floor-standing: 540 x 500 x 1362 mm |
Weight | Countertop: 22.6kg / Floor-standing: 34.8kg |
Operating Temp | 0 ~ +50 °C |
Power Supply | Internal 12V/60W + 24V/60W |
Features
- Black
- Single
- HDMI
- Serial
- USB
- No
- Windows 10 IOT
- Yes
- Intel Celeron
- 4 GB
- Yes
- 21.5 inch
- 64GB
- SSD
- Kiosk
