Description

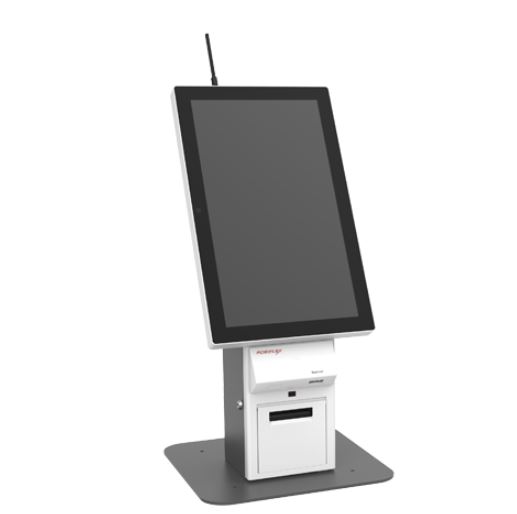

The POSIFLEX EK-2130 21.5” Kiosk is a sleek and versatile self-service solution designed to suit retail, hospitality, ticketing, and information point applications across Australia. Powered by the reliable Intel® Bay Trail J1900 quad-core processor, paired with 4GB DDR3L RAM and a 64GB SSD, this kiosk ensures dependable performance for high-traffic environments.
Featuring a true-flat 21.5” Full HD touchscreen in either portrait or landscape orientation, the EK-2130 combines intuitive usability with modern aesthetics. It comes standard with a high-speed 3” thermal printer, wide-angle camera, and proximity sensor, making it ideal for customer-facing deployments.
With built-in 2D barcode scanning and WiFi connectivity, the EK-2130 offers flexible integration options. Its modular design supports additional features such as fingerprint readers, NFC/RFID, and 4G modules, ensuring scalability for future business needs. Whether installed as a countertop or freestanding unit, the EK-2130 is engineered for reliability, easy maintenance, and optimal customer interaction.
Product Features
- 21.5” Full HD TFT LED backlit display with PCAP multi-touch technology.
- Intel® Bay Trail J1900 quad-core CPU, up to 2.42GHz with 2M cache.
- 4GB DDR3L RAM (expandable to 8GB).
- 64GB SSD storage, upgradeable to larger capacities.
- Built-in 3” high-speed thermal printer (200mm/sec).
- Integrated 1MP wide-angle camera and proximity sensor.
- 2D barcode scanner and WiFi module included.
- Multiple I/O options including HDMI, USB, RS-232, and Ethernet.
- Portrait or landscape orientation options available from factory.
- Designed for countertop or floor-standing installation with base plate.
Product Specifications
Specification | Details |
Display | 21.5” TFT LED Backlit LCD, 1920 x 1080 resolution |
Touch Technology | True-flat PCAP multi-touch |
Processor | Intel® Bay Trail Celeron™ J1900 Quad Core, 2.0–2.42GHz, 2M cache |
Memory | 4GB DDR3L (max 8GB) |
Storage | 64GB SSD (upgradeable) |
Printer | Integrated 3” thermal printer, 200mm/sec |
Scanner | 2D barcode scanner |
Camera | 1MP wide-angle |
Sensors | Proximity sensor, 60–100cm range |
Connectivity | WiFi/BT module, Ethernet |
Ports | 6 x RS-232, 8 x USB (1 x USB3.0, 7 x USB2.0), 1 x HDMI |
Audio | Internal 3W speaker x 2 |
OS Support | No OS pre-installed (supports Windows 10 IoT, Windows 7, POSReady 7, Linux) |
Dimensions (Portrait) | Countertop: 395 x 395 x 774 mm / Floor-standing: 500 x 500 x 1546 mm |
Dimensions (Landscape) | Countertop: 540 x 395 x 588 mm / Floor-standing: 540 x 500 x 1362 mm |
Weight | Countertop: 22.6kg / Floor-standing: 34.8kg |
Operating Temp | 0 ~ +50 °C |
Power Supply | Internal 12V/60W + 24V/60W |
