POSIFLEX HS-3512 Term 4G 64G SSD Fingerprint Read Win10IoT

$3,000.00
For Special & Volume Pricing - Call +61 489 087 085
PFHS3512B-4064SFPE
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

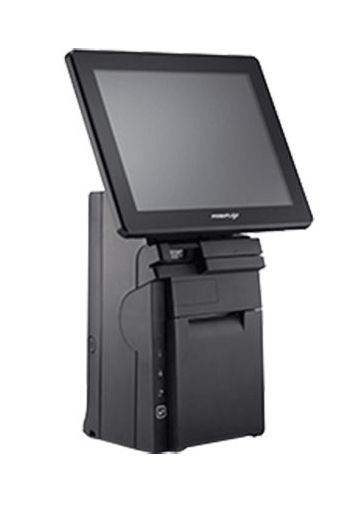

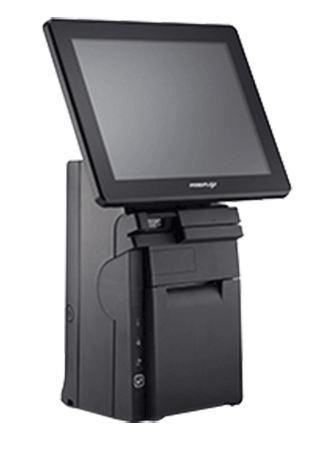

HS-3512 all-in-one 12" Mini fanfree bezeless touch (PCAP) terminal Intel J1900 Quad core up to 2.42Ghz 2M cache with 3" (200mm/sec) thermal printer, auto cutter. 4GB DDR3L, 128GB SSD, WIN10 Entry Preloaded 64 Bit LTSC 2019, Fingerprint Reader

  • Fan free POS Terminal
  • 12.1" LCD Display with PCAP Touch
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • All-in-one design
  • Small footprint
  • Build in 80mm high speed thermal Printer
  • Easy replaceable Printer Module
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability

Specifications
CPU
Intel Bay Trail Qual Core up to 2.42G, 2M cache

Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB

Storage device(s)
In Australia standard with 64 GB SSD
Also Available with HDD or larger SSD on request

Display
12.1" LCD Display

Resolution
1024 x 768

Tilt Angle
17 ~ 45°

Touch Panel
True-Flat PCAP touch with 10 point multi-touch support

I/O Ports
3 x RS-232 interfaces; DB9 x2 & RJ-45 x1 with 5V or 12V support on COM1/COM2/COM3
4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
1 x Parallel Port
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
1 x Mini-PCIe Slot

I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
Smartcard Reader
RFID Reader HID/VCOM Selectable
Fingerprint Reader
Mini-PCIe Wifi Module

Audio
Line out Only

OS Support
POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / WIN 10 IoT / Linux per request

Environmental Sealing
IP65 to front of screen

Operating Environment
SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity
HDD: 0 °C ~ 40 °C, 20% ~ 90% Relative Humidity

Storage Environment
-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity

Power Supply
External Power Adapter 24V, 60W

External Dimensions (WxDxH)
224.5mm x 185mm x 387mm

Weight
4.2 Kg
