Posiflex HS-3512 Terminal 4G/64G SSD/MSR/POSR7 64b

Black, Single, Serial, Ethernet, VGA, USB, No, Windows, No, No, 12 inch, All-in-one POS, Capacitative, 3 Years, Posiflex
$3,099.00
For Special & Volume Pricing - Call +61 2 9090 4610
PFHS3512CB-4064SMZ
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

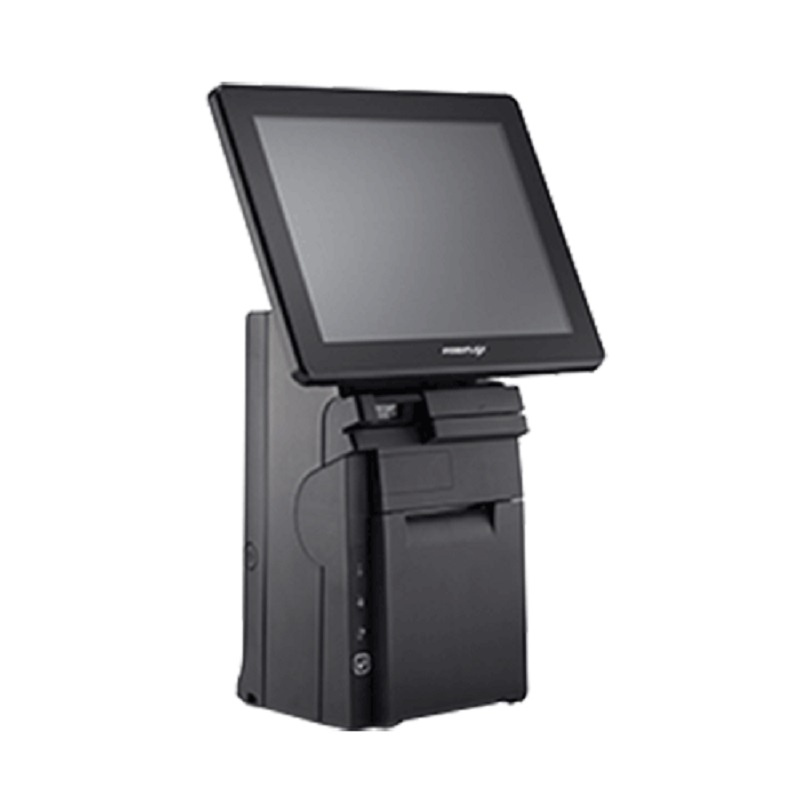

Experience seamless point-of-sale operations with the Posiflex HS-3512, a compact, all-in-one POS terminal built for performance, reliability, and space efficiency. Designed with a 12.1-inch PCAP multi-touch display, integrated 80mm high-speed thermal printer, and fanless architecture, this terminal ensures quiet operation and minimal maintenance.

Powered by an Intel J1900 Quad-Core processor, the HS-3512 delivers solid performance for retail and hospitality businesses. It comes preloaded with Windows 10 IoT 64-bit LTSC 2019, 4GB of RAM, and a 64GB SSD for fast boot-up and application performance. Its built-in fingerprint reader, optional MSR, RFID, and smart card readers offer enhanced security and versatility.

Whether you’re running a retail store, quick-service restaurant, or hospitality venue, the HS-3512 provides powerful features in a sleek, space-saving design, complete with customer display options and reliable connectivity.


Product Features

  • 12.1” True Flat PCAP Multi-Touch Display with IP65 front panel for durability
  • Fanless Design for quiet operation and minimal dust intrusion
  • Integrated 80mm Thermal Printer with 200mm/sec print speed and auto cutter
  • Intel J1900 Quad-Core CPU up to 2.42GHz with 2M cache for efficient multitasking
  • Preloaded with Windows 10 IoT 64-bit LTSC 2019 for secure and stable operations
  • 4GB DDR3L RAM (expandable up to 8GB) and 64GB SSD for fast performance
  • Multiple I/O Ports: USB 3.0, USB 2.0, COM, VGA, Ethernet, and cash drawer support
  • Optional Integrated Devices: MSR, RFID reader, smart card reader, fingerprint scanner
  • Versatile Mounting Options with included bench lock-down bracket for stability
  • Compact Footprint perfect for counters with limited space


Product Specifications

Specification

Details

Processor

Intel Bay Trail J1900 Quad-Core, up to 2.42 GHz, 2M Cache

Memory

4GB DDR3L RAM (expandable to 8GB)

Storage

64GB SSD (larger SSD or HDD available on request)

Display

12.1" TFT LCD, 1024 x 768 resolution

Touch Panel

True Flat PCAP Multi-Touch, 10-point support

Built-in Printer

80mm thermal printer, 200mm/sec, with auto cutter

I/O Ports

3 x RS-232, 4 x USB (1 x USB 3.0), VGA, Ethernet, Parallel, Cash Drawer

Optional Modules

MSR, Smartcard Reader, RFID, Fingerprint Reader, WiFi

OS Support

Windows 10 IoT, Windows 7, POSReady 7, Windows Embedded 8.1, Linux

Audio

Line-out only

Environmental Rating

IP65 front panel

Operating Temp.

0°C ~ 50°C (SSD), 0°C ~ 40°C (HDD), 20%~90% RH

Storage Temp.

-20°C ~ 70°C, 10% ~ 90% RH

Power Supply

24V / 60W external adapter

Dimensions (WxDxH)

224.5mm x 185mm x 387mm

Weight

4.2 kg

Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Ethernet
  • Serial
  • USB
  • VGA
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Scanner Capability:
  • No
Screen Size Font:
  • 12 inch
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Posiflex

Attachments

Brochure (hs3510w-3512w_brochure.pdf, 504 Kb) [Download]
