POSIFLEX HS-3514 Terminal 4G 64G SSD 4G Mod WIN 10IoT 64b

Black, Single, WLAN, VGA, USB, Serial, Parallel, Windows 10 IOT, Yes, Intel Celeron, 4 GB, No, 14 inch, 64GB, SSD, All-in-one POS, Capacitative, 1 Year, Posiflex
$2,999.00
For Special & Volume Pricing - Call +61 2 9090 4610
PFHS3514CB-4064S4GD
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

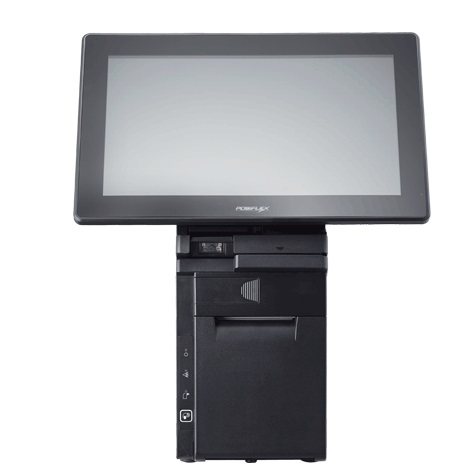

The POSIFLEX HS-3514 is a powerful and compact All-in-One POS terminal designed for high-performance retail and hospitality operations. Featuring a 14” PCAP touchscreen, fanless architecture, and a built-in 80mm high-speed thermal printer, this terminal delivers reliability, quiet operation, and efficient service at the counter.

Powered by an Intel Bay Trail J1900 Quad-Core processor, paired with 4GB RAM and 64GB SSD, the HS-3514 provides responsive performance for POS applications. The system also comes preloaded with Windows 10 IoT 64-bit and includes a 4G module, ensuring always-on connectivity for modern businesses.

Its modular design allows for future expansion with options for RFID readers, MSRs, fingerprint modules, and customer displays. Designed with a small footprint, bench mounting bracket, and IP65 front panel sealing, the HS-3514 fits perfectly in demanding Australian retail environments where space and reliability are critical.


Product Features

  • 14-inch True-Flat PCAP Touchscreen with 10-point multitouch
  • Fanless design for silent, dust-free operation
  • Built-in 80mm thermal printer with 200mm/sec speed and auto cutter
  • Intel Bay Trail J1900 Quad-Core CPU up to 2.42GHz with 2MB cache
  • 4GB DDR3L RAM and 64GB SSD storage preloaded with Windows 10 IoT
  • Integrated 4G modem for seamless connectivity
  • Modular architecture for optional RFID, MSR, fingerprint, and smartcard reader
  • Includes bracket to securely lock terminal to the counter
  • Multiple connectivity ports: USB, Serial, VGA, Ethernet, Cash Drawer
  • IP65-rated front screen for water and dust resistance


Product Specifications

Specification

Details

Model

POSIFLEX HS-3514

Display

14" LCD, 1366 x 768 resolution, 17–45° tilt

Touch Technology

PCAP (Projected Capacitive), 10-point multi-touch

Processor

Intel Bay Trail J1900 Quad-Core, up to 2.42GHz, 2MB cache

Memory

4GB DDR3L (expandable to 8GB)

Storage

64GB SSD (optional HDD/larger SSD available)

Printer

80mm Thermal Printer, 200mm/sec, Auto Cutter

Connectivity

3 x RS232, 4 x USB, 1 x Parallel, 1 x VGA, 1 x Ethernet, 1 x Mini-PCIe

OS Support

Windows 10 IoT (preloaded), Win 7/8.1, Linux (on request)

Audio

Line out only

Wireless

4G module installed, optional WiFi module via Mini-PCIe

Environmental Sealing

IP65 front panel

Operating Temp (SSD)

0°C ~ 50°C, 20% ~ 90% RH

Storage Temp

-20°C ~ 70°C, 10% ~ 90% RH

Power Supply

24V, 60W external power adapter

Dimensions (WxDxH)

376.1mm x 188.8mm x 473mm

Weight

5.8 kg

Mounting

Bench lock-down bracket included

Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Parallel
  • Serial
  • USB
  • VGA
  • WLAN
OS Compatability:
  • Windows 10 IOT
Printer:
  • Yes
Processor:
  • Intel Celeron
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 14 inch
Storage Capacity:
  • 64GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
1 Year
Manufacturer
:
Posiflex

Attachments

Brochure (hs3510-12-14_brochure.pdf, 518 Kb) [Download]
