POSIFLEX KS7715 i5 2.5GHz 4GB 64GB SSD POSR7 TOUCH SYSTEM

KS77209692400GU
$3,296.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

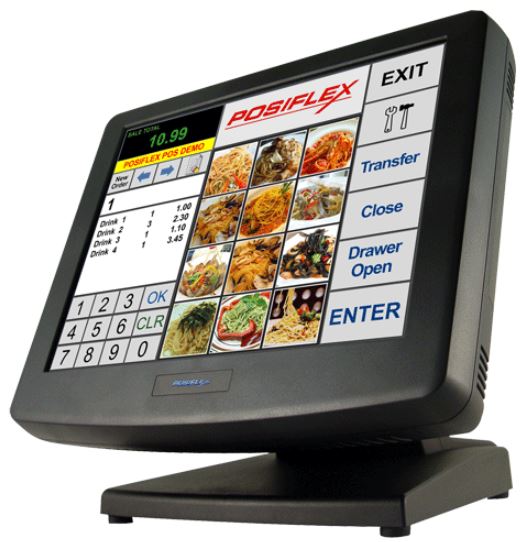

POSIFLEX KS7715 Tch Syst i5 2.5GHz 4GB 64GB SSD POSR7

Posiflex KS7715 Fanless Resistive Touch System, Intel i5 2.5 GHz CPU, 4GB DDR3 RAM, 64GB SSD, POSReady 7 preloaded, Gen 6 Base

Features :

  • PC POS Touch System
  • Standard with Intel i3 2.2GHz CPU and DDR3 memory, Optional with i5 2.5 GHz CPU
  • Fan-free design boasting quiet and anti-dust features
  • Patented aluminium die-cast housing design for efficient cooling Resistive or IR touch screen
  • 15” LCD 1024 x 768 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • UPS (Embedded on board developed by Posiflex) support to avoid sudden power loss (Optional)
  • Push-open cover to protect power switch from accidental shutdown
  • Bottom cable guide design and cover for safety and neat outlook
  • User-friendly mechanism for system upgrade and easy maintenance
  • Available with optional Bezel free front panel
  • Optional Shinny diamond black or white front bezel for stunning look
  • Standard on Generation 6 super slim base, optional Gen 5 or Gen 5.5 Base available



Specifications :

CPU : Intel Core i3 2.2 Ghz CPU / 3M Cache
or Intel Core i5 2.5 Ghz CPU / 3M Cache

Memory : DDR3 1066 MHz, SO-DIMM socket x 2, max 8 GB, default 4 GB

Storage device(s) : In Australia Standard with 64 GB SSD in the Base stand, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" Active Matrix LCD Display

Resolution : 1024 x 768

Tilt Angle : 15° to 70°

Touch Panel : Normal Bezel: 5-wire Resistive (USB I/F) or optional IR Touch (USB I/F)
Bezel Free: Resistive (USB I/F) or optional PC Multi Touch (USB I/F)

I/O Ports : 4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ45) with 5V/12V Support
7 x USB Ports (6 on I/O Panel and 1 on the side)
1 Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional Parallel port with Proprietory cable

Audio : 2W Speaker x 2 & Line out

OS Support : WIN7 / Posready 7

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter (120W),
Optional upgrade to 150W when equiped with 2nd Display option

External Dimensions (WxDxH) : 378mm x 312mm x 340mm

Weight : 9.25 Kg



Attachments

Brochure (ks7700_brochure.pdf, 320 Kb) [Download]
