Description

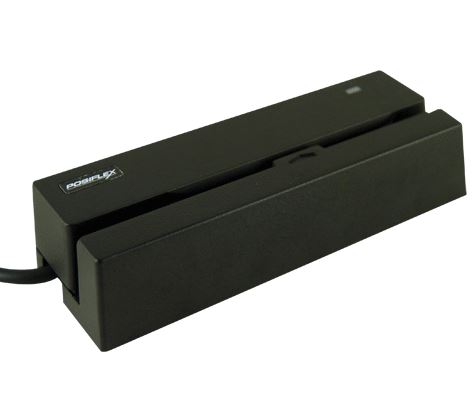

The Posiflex PFMR2200B3-U is a dual-head magnetic stripe card reader designed for reliability and high-performance in retail, hospitality, and financial environments. Supporting all three ISO 7811 card tracks, it ensures accurate data reading with bi-directional swipes. Its heavy-duty die-cast housing provides durability for continuous use, while multiple interface options (USB, RS232, KBW) allow seamless integration into various POS systems. The built-in decoder and LED indicators simplify operation, and the compact design makes it ideal for counters and kiosks. Perfect for secure card processing and versatile enough for a range of card types, including ISO, AAMVA, and CA DMV cards, this reader ensures fast and reliable performance for high-traffic environments.
Product Features
- Dual-head magnetic stripe reader with bi-directional swipe
- Supports 3-track ISO 7811 magnetic cards
- Built-in decoder for fast, accurate data processing
- Heavy-duty die-cast housing for durability
- USB 2.0 interface with selectable HID/VCOM, RS232, or KBW
- Compatible with ISO, AAMVA, and CA DMV cards
- Manual card feed with 5–55 inches/sec feed speed
- Dual LED status indicators for easy monitoring
- Compact and lightweight design (46 × 145 × 34 mm, 495 g)
- Ideal for POS, financial, and secure access applications
Product Specifications
Specification | Details |
Manufacturer | Posiflex Technology, Inc. |
Brand | Posiflex |
Product Type | Magnetic Stripe Card Reader |
Model / Part Number | PFMR2200B3-U |
Reader Type | Dual-head, Bi-directional Swipe |
Supported Tracks | Track 1 (IATA), Track 2 (ABA), Track 3 (THRIFT) |
Compatible Card Types | ISO 7811, AAMVA, CA DMV |
Read/Write Function | Read-only |
Card Feed Method | Manual, Bi-directional |
Interfaces | USB 2.0, RS-232, KBW (special order) |
Transmission Speed | Max. 12 Mbits/sec |
Indicators/Controls | Dual LED Status Display |
Power Supply | 5 V ± 5 >#/span### |
Power Consumption | 100 mA typical |
Operating Environment | 0–50°C, RH 5–90% (non-condensing) |
Storage Environment | -20–65°C, RH 5–90% (non-condensing) |
Dimensions (WxDxH) | 46 × 145 × 34 mm |
Weight | Approx. 495 g (excluding cable) |
Included Accessories | Interface cable |
