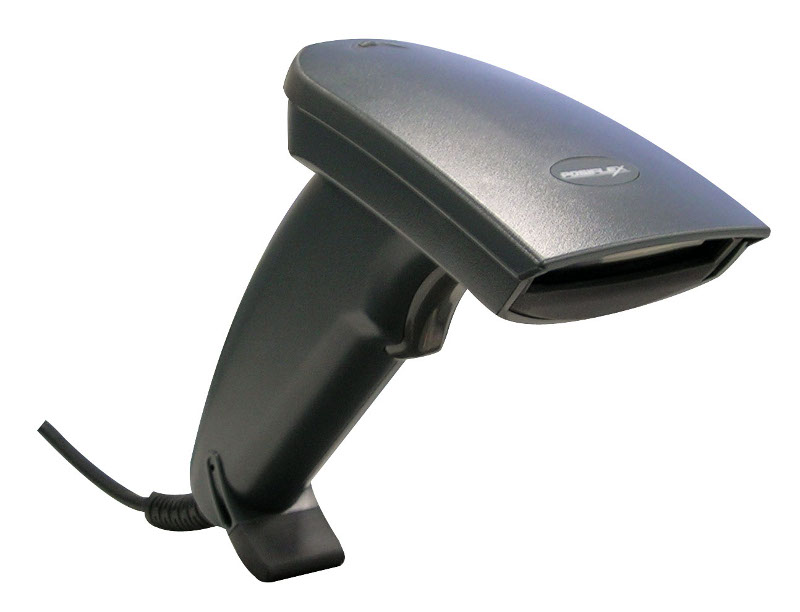

Posiflex PFCD3830 Series Linear Imager Handheld Barcode Scanner

PFCD3830B-K / PFCD3830B-R / PFCD3830B-U / PFCD3830-U / PFCD3830-
[Contact us for a price] Request a quote
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match


**Discontinued Replacement: CD-3860**
 The CD3830 is Posiflexs long range low cost handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price.The scanning parts of the OPR3201 are positioned near the central core of the grip to stabilize the hand movement while scanning. Together with the large grip, this makes it easier and more comfortable to target the barcodes.
Main Features:
  • Handheld Linear Imager Scanner
  • Aggressive reading and extended depth-of-field
  • Reliable and durable, No moving parts
  • 10 drops from 1.5m to concrete
  • Developed with operator comfort in mind
  • Lightweight, ergonomic design
  • Available in Ivory and Black


Posiflex PFCD3830-Brochure (pfcd3830.pdf, 417 Kb) [Download]


Light source

660nm Visible Red Diode

Optical System

2048 pixel CCD

Scan rate

200 Scan/sec


0.1mm(4mils) Code39,PCS=90%

Print Contrast

25% or higher

Depth of field

0-250 mm

(CODE 39, PCS=90%, 20mils)

Scan Width

120 mm

Scanning Angle

Front: 60° Rear: 60° Yaw: 75°


7 tones or no Beep

Visual Indicator

Green LED


PS2 Keyboard wedge, Standard RS-232, USB

Symbologies supported

Auto discriminates all standard 1D barcodes, Other symbologies can be ordered optionally


DC +5V ±5%

Power Consumption

Operating power: 1275 mW

Standby power: 600 mW

Operating Temperature

0 ~ 45 ºC

Storage Temperature

-40 ~ 60 ºC

Relative Humidity

5% ~ 90% non condensing

Dimensions (H x W x L)

182 x 74 x 51 mm


160 g (cable not included)
