Posiflex PFPP8000 Series Aura 8000 Thermal POS Receipt Printer


[Contact us for a price]
For Special & Volume Pricing - Call 0291 919 694
PFPP8000RB / PFPP8000UB / PFPP8000PB / PFPP8000EB

Description

Discontinued, Replacement: PP-8800

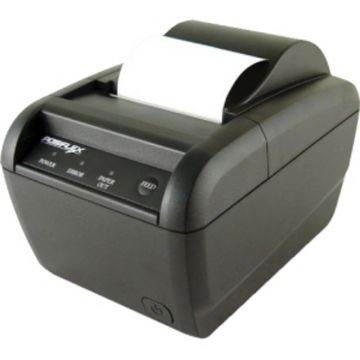

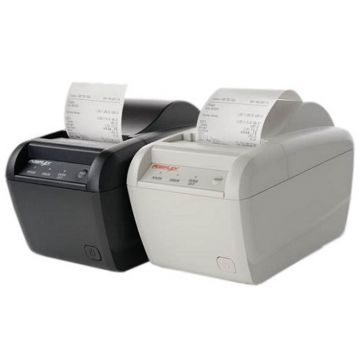

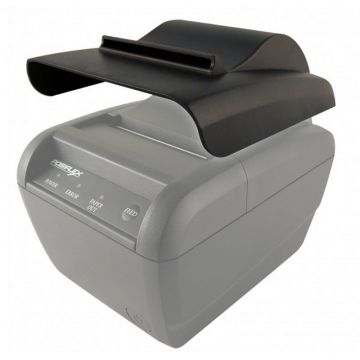

The Posiflex AURA 8000 POS Thermal Receipt Printer is a high speed direct thermal printer. It has a small streamlined design and is capable of working in harsh environments. It's optional top cover will make it more splash resistant. The Baud rate of the RS232 interface has been increased to 115200 bps for increased printing speed of graphics. The PP8000 comes standard with an 80mm thermal sensitive paper roll.

Main Features :

  • POS Thermal Receipt Printer
  • High Speed printing at 220 mm/sec
  • Windows and OPOS drivers available
  • High Resolution 8 dots/mm
  • Low noise thermal printing
  • Drop-and-load paper loading
  • Available with RS232, Parallel, USB or Ethernet Interface
  • Supports optional kitchen bell/buzzer

Attachments

AURA-8000series (AURA8000_brochure.pdf, 1,030 Kb) [Download]

Specifications



Printing Method

Line Thermal Dot Printing

Printing Resolution

0.125 x 0.125 mm

Dot pitch

8 dots/mm (512 dots/line)

Printing Speed (Max.)

Max. 220 mm/Sec

Paper feed method

Friction

Paper Type

Thermal Paper Roll

Paper Width

80 ± 0.5mm or 58 ± 0.5mm

Paper Roll Diameter

Max Ø 83.0mm

Paper Supply Method

Easy Paper Loading, Drop in loading

Emulation

ESC/POS

Input Buffer

10 KB

Sensors

Paper End Sensor, Paper near en , Cover Open Sensor, Overheat, Cash Drawer Opening

Drawer Ports

1 port (opens 2 drawers, special cable is needed to open 2 drawers)

Interfaces Available

RS232, Parallel, USB or Ethernet

Driver available

Windows 2000/NT/XP/VISTA/7

Weight

approx. 1.2Kg

External Dimensions

(W x D x H)

148 x 205 x 143mm

EMC/Safety Standards

C-Tick, FCC Class A, RoHS, CE

Power Supply

External Power Supply:

Input: 100 ~ 240 V AC, 50~60 Hz, 1.8A max @ 115V AC

Output: 24V DC, Max 60W

Power Consumption

Printing 40 W, Sleep 0,7 W, Standby 0,15 W

Operating Environment

5-40°C, 10-90% RH

Storage Environment

-20-60°C, 10-90% RH
