Description

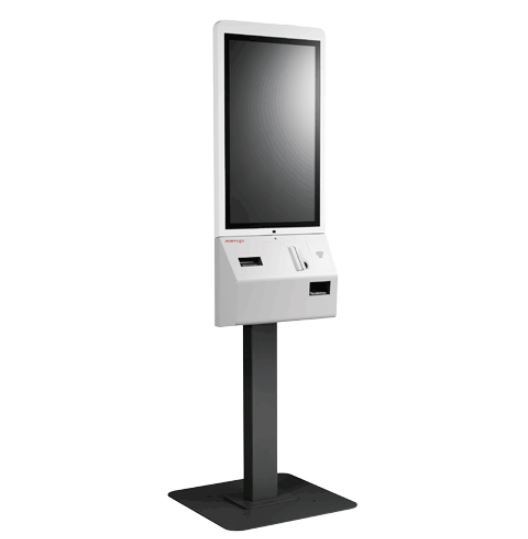

The POSIFLEX Paragon TK-3250 is a premium 32-inch slimline kiosk designed for modern self-service, ticketing, and retail environments. Engineered for single-sided operation, it features a 3" high-speed receipt printer, integrated 2D barcode scanner, magstripe reader (MSR), 1MP wide-angle camera, proximity sensor, and RGB status indicator for an enhanced customer experience.
Powered by an Intel 7th Generation Kaby Lake Core i3-7100U processor, 8GB DDR4 RAM, and a fast 128GB SSD, the TK-3250 delivers smooth performance and rapid data processing. Built-in WiFi/Bluetooth connectivity enables flexible deployment, while the true-flat PCAP multi-touch display offers responsive, intuitive interaction.
Designed for front-access servicing and minimal downtime, the TK-3250 is ideal for high-traffic locations. Available in pole-mounted or wall-mounted configurations, it is perfect for applications such as self-check-in, wayfinding, ticket printing, and retail self-order terminals. Optional modules include NFC reader, fingerprint sensor, EMV payment device bracket, and 4G LTE support.
Product Features
- Large 32" full HD LED-backlit display with true-flat PCAP multi-touch.
- Intel Core i3-7100U dual-core processor with 3M cache for reliable performance.
- 8GB DDR4 RAM and 128GB SSD for fast boot and operation.
- Integrated 2D barcode scanner for quick, accurate scanning.
- 3" high-speed thermal printer with auto cutter (up to 250mm/sec).
- 1MP wide-angle camera and proximity sensor for interactive applications.
- RGB status indicator for visual feedback in self-service environments.
- WiFi/Bluetooth connectivity included.
- Front-access maintenance design to reduce downtime.
- Flexible mounting – pole or wall-mounted configuration.
- Optional upgrades: NFC reader, fingerprint sensor, EMV payment bracket, 4G LTE.
Product Specifications
Specification | Details |
Processor | Intel 7th Gen Kaby Lake Core i3-7100U, Dual Core, 2.4 GHz, 3M cache |
Memory | 8GB DDR4 SO-DIMM (max 16GB) |
Storage | 128GB SSD (upgradeable) |
Display | 32" TFT LED-backlit LCD, 1920 x 1080 resolution |
Touch Panel | True-flat PCAP multi-touch |
Printer | 3" open frame thermal printer, auto cutter, 250mm/sec |
Scanner | Integrated 2D barcode scanner |
Camera | 1MP wide-angle |
Proximity Sensor | Range 60–100cm |
Status Indicator | RGB LED |
MSR | 3-track ISO/JISII |
I/O Ports | 6 x RS-232, 6 x USB, 1 x Ethernet, 1 x M.2 slot, miniDP x 1 |
Audio | 2 x 3W internal speakers |
Connectivity | WiFi, Bluetooth, LAN |
OS Support | Windows 7, POSReady 7, Windows Embedded 8.1, Windows 10 IoT, Linux |
Mounting Options | Pole or wall mount |
Colour | Black |
Dimensions (Pole Mount) | 495mm x 602mm x 1859mm |
Dimensions (Wall Mount) | 495mm x 184mm x 1189mm |
Weight | 61.5kg (pole), 32.5kg (wall mount) |
Operating Temperature | 0°C to +40°C (SSD) |
Storage Temperature | -20°C to +70°C |
Warranty | 3 Years Limited Warranty |
Features
Colour:
- Black
Display:
- LCD
- Single
Interface:
- Serial
- USB
Magstripe Option:
- Yes
OS Compatability:
- Windows 10 IOT
Printer:
- Yes
Processor:
- Core i3
- Core i5
- Core i7
- Intel 7th Generation
Ram:
- 8 GB
Scanner Capability:
- Yes
Screen Size Font:
- 32 inch
Storage Capacity:
- 128GB
Storage Type:
- SSD
Terminal Type:
- Kiosk
Touch Technology:
Capacitative
Warranty:
3 Years
