POSIFLEX XT3817G2 J6412 Q Core 4G 120G SSD PCAP IoT 2021

Black, Single, USB, Serial, Parallel, Ethernet, No, Windows, No, Intel Celeron, 4 GB, No, 17 inch, SSD, POS PC, All-in-one POS, Capacitative, 3 Years, Posiflex
$1,989.00
For Special & Volume Pricing - Call +61 2 9090 4610
XT382701303200FJ
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

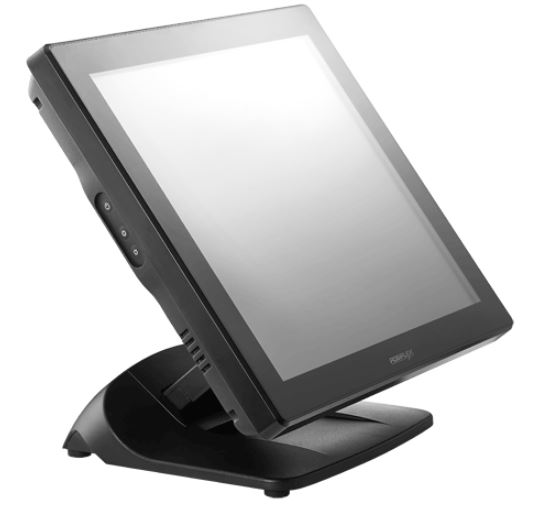

The POSIFLEX XT-3817G2 redefines performance and style in the world of touchscreen POS systems. Engineered with a 17” bezel-free PCAP multi-touch display and powered by the energy-efficient Intel Elkhart Lake J6412 Quad-Core processor, this fanless terminal is built for modern Australian retail and hospitality businesses.

Designed to handle demanding environments, the XT-3817G2 features a silent fanless architecture, a rugged aluminium die-cast housing, and advanced cable management—all wrapped in a slimline form. Its projected capacitive touch technology ensures highly responsive and intuitive user interaction.

The terminal offers extensive connectivity with 4 serial ports, 8 USB ports, 2 LAN, and a VGA output, supporting both legacy peripherals and new-generation devices. Combined with Windows 10 IoT and a 128GB M.2 SSD, the XT-3817G2 is your dependable platform for POS operations across retail, quick service, and hospitality sectors in Australia.


Product Features

  • 17” True-Flat PCAP Touchscreen with 1280x1024 resolution
  • Intel J6412 Quad-Core CPU (up to 2.6GHz) for high efficiency
  • Fan-free design for silent, dust-resistant performance
  • Aluminium die-cast housing for durability and passive cooling
  • Bezel-free design for seamless cleaning and maintenance
  • 4 x RS232, 8 x USB, 2 x LAN, VGA, and CR Port for maximum connectivity
  • Push-open service cover to protect the power switch
  • Optional Gen 8 Base with Powered USB (24V + 12V x3)
  • Built-in speaker and UPS battery support
  • Windows 10 IoT 64-bit pre-installed


Product Specifications

Specification

Details

Model

POSIFLEX XT-3817G2

Processor

Intel Elkhart Lake Celeron J6412, Quad-Core, up to 2.60GHz

RAM

4GB DDR4 SO-DIMM (up to 32GB supported)

Storage

128GB M.2 SSD (AHCI supported)

Display

17” TFT LED LCD, 1280 x 1024 resolution

Touch Technology

Projective Capacitive (PCAP), 10-point multi-touch

USB Ports

8 total (2 x USB 3.0, 6 x USB 2.0)

Serial Ports

4 x RS232 (3 x DB9, 1 x RJ50)

LAN Ports

2 x 10/100/1000 Ethernet

Display Output

1 x VGA (12V power for Posiflex monitors)

Cash Drawer Port

1 x RJ11 (supports 2 drawers via optional Y-cable)

Audio

2W internal speaker

Expansion Slots

1 x M.2 slot, 1 x Mini PCI-E slot

Optional Features

MSR, 2D Scanner, RFID, Fingerprint Sensor, Customer Display

OS

Windows 10 IoT Enterprise 64-bit

Power Supply

12V DC Adapter (84W standard, 120W with 2nd display)

Operating Temperature

0°C ~ 40°C, 20% ~ 90% RH

Storage Temperature

-20°C ~ 70°C, 10% ~ 90% RH

Dimensions (WxDxH)

404mm x 251mm x 355mm

Weight

7.2 kg

Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Ethernet
  • Parallel
  • Serial
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 17 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
  • POS PC
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Posiflex

Attachments

Brochure (xt3817g2_pdf.pdf, 5,119 Kb) [Download]
