POSIFLEX XT5315 with CEL2.7GHz CPU 4GB 120GB SSD POSR7 TOUCH SYSTEM

XT531531B64220
$3,199.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

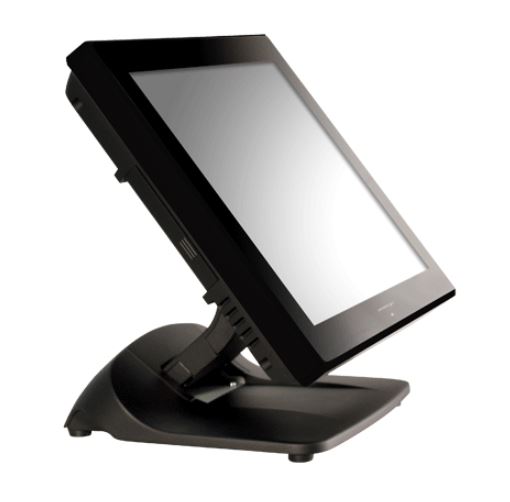

POSIFLEX XT5315 with CEL2.7GHz CPU 4GB 120GB SSD POSR7

15" Bezelfree LCD touch (PCAP) terminal(1024x768) with Intel Haswell Celeron-2.7GHz(2M Cache), 4GB DDR3, 128GB SSD, with 7th GEN Base, POSReady 7 64 bit Preloaded

Features :

  • Fan-free Design
  • Projective Capacity Touch
  • Intel 4th generation Haswell CPU
  • New GEN7E foldable base that allows JIVA XT Series to be configured into different configurations
  • New GEN8E foldable base that integrates internal power adaptor and Powered USB port into the base stand
  • Mini-PCIe expansion slot
  • Dual LAN ports

Specifications :

CPU : Intel G1820 - 2.7GHz. 2M Cache
Can also be purchased with i3

Memory : DDR3 1333 MHz, SO-DIMM socket x 2, max 16 GB, default 4 GB

Storage device(s) : In Australia Standard with 64 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" TFT LCD Display

Resolution : 1024 x 768

Tilt Angle : 15° to 90°

Touch Panel : Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch

I/O Ports : 6 x RS-232 Ports (2 x DB9, 2 x RJ50 on I.O plate)pin header x 2 from service window, with 5V/12V Support
6 x Standard USB Ports
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x mini-PCIe slot internal expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional 1 x Parallel port with Proprietory cable
Optional powered USB Ports 1 x 24V and 3 x 12V via GEN8e Base

Audio : 2W Speaker internal x 1 + Line Out

OS Support : Windows 7 / POSReady 7 / Linux per request

Environmental Sealing : N/A

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)

External Dimensions (WxDxH) : 372mm x 320mm x 252.7mm

Weight : 5.86 Kg



Attachments

Brochure (XT-5315.pdf, 1,851 Kb) [Download]
