Description

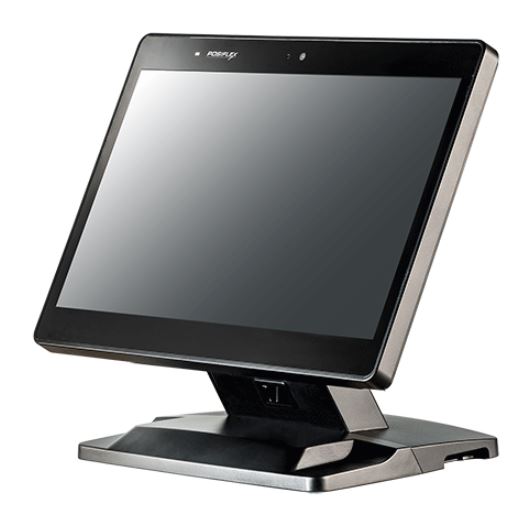

Engineered for high-performance and reliability in retail and hospitality environments, the POSIFLEX ZT-3715 redefines efficiency with its fanless, ultra-slim, and bezel-free design. Powered by an Intel® Tiger Lake Core™ i5-1155G7 processor, this 15” PCAP touchscreen terminal delivers powerful multitasking, ultra-quiet operation, and exceptional durability. It features dual SSD storage (128GB + 512GB M.2), 16GB DDR4 memory, and an innovative clamshell design for tool-free servicing.
The ZT-3715 is equipped with versatile I/O ports, clean cable management, and robust aluminium die-cast housing, making it ideal for high-traffic retail counters, quick-service restaurants, and customer-facing environments. It includes a magnetic stripe reader (MSR) and the TM5011 customer display, ensuring a complete, future-ready POS solution.
Product Features
- Intel® Core™ i5-1155G7 CPU (up to 4.50GHz, 8M cache) for responsive, reliable performance
- Slim, fanless, and bezel-free design for quiet and dust-resistant operation
- 15” PCAP touch screen with 1024 x 768 resolution and 10-point multi-touch
- 16GB DDR4 RAM with upgrade potential up to 64GB
- Dual SSD configuration: 128GB + 512GB M.2 SATA SSD for high-speed storage
- Rich I/O including USB 3.0, USB 2.0, RS232, Ethernet, DP, and Type-C
- IP65 front panel protection against dust and spills
- Clamshell design for quick and easy serviceability
- Includes MSR and TM5011 10.1" customer display
- Durable aluminium die-cast housing for enhanced thermal management
Product Specifications
Model | POSIFLEX ZT-3715 |
Processor | Intel Core i5-1155G7 (2.5GHz up to 4.5GHz, 8MB Cache) |
Memory | 16GB DDR4 (expandable up to 64GB) |
Storage | 128GB M.2 SSD + 512GB M.2 SSD |
Display | 15” TFT LED LCD, 1024 x 768, PCAP Touch (10-point) |
Touch Technology | Projective Capacitive (PCAP), Bezel-free |
I/O Ports | 2 x RS232, 5 x USB (2 x USB 3.0), LAN, DP, Type-C |
Audio | 1 x 2W Internal Speaker |
Customer Display | TM5011 10.1” LCD display (attached) |
Operating System | No OS (Windows 10 IoT Supported) |
Power Supply | 24V DC Adapter (60W, optional 80W for dual display) |
Environmental Rating | IP65 (Front), 0°C–40°C Operating Range |
Construction | Aluminium die-cast housing |
Dimensions (WxDxH) | 353mm x 206mm x 319mm |
Weight | 4.9 kg |
Colour | Black |
