SAM4S Astra 263 Kiosk J6412 8GB 128G SSD W10IoT21 2DSc W

White, Single, Serial, USB, VGA, Ethernet, No, Windows 10 IOT, Yes, Intel J6412, Quad-core, 8 GB, Yes, 21.5 inch, 128GB, SSD, Kiosk, Capacitative, 3 Years, SAM4S
$3,169.00
For Special & Volume Pricing - Call +61 489 087 085
AS263W-80128SC21
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

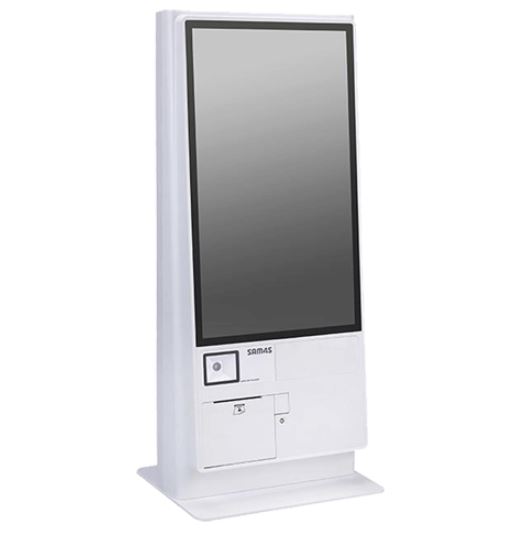

The SAM4S Astra 263 21.5" Kiosk is a powerful, versatile, and space-saving self-service solution designed for modern retail, hospitality, and service environments. Featuring an Intel® Elkhart Lake J6412 Quad-Core processor, 8GB DDR4 RAM, and 128GB SSD storage, it delivers fast, reliable performance for a range of applications. Its full-HD 21.5" projected capacitive touch display ensures smooth, accurate user interaction, while the integrated 3" direct thermal printer provides quick and efficient receipt printing.

With optional upgrades like a 2D barcode scanner, Wi-Fi module, and custom payment terminal brackets, the Astra 263 can be tailored to suit your business needs. Its stylish white finish and compact countertop design make it perfect for checkout counters, self-order stations, ticketing, and registration points, with an optional floor stand for freestanding deployment. Built for 24/7 use, this kiosk combines robust performance with flexible connectivity, making it an excellent investment for businesses in Australia seeking to enhance customer service and efficiency.


Product Features

  • 21.5" Full HD Touch Display – TFT LED backlit LCD with 1920 x 1080 resolution for crisp visuals.
  • Responsive Multi-Touch Panel – True-flat PCAP touch with 10-point multi-touch support.
  • Powerful Processing – Intel® Elkhart Lake J6412 Quad-Core CPU up to 2.6GHz for smooth operation.
  • Fast & Reliable Storage – 128GB SSD standard, upgradable to 256GB for added capacity.
  • Ample Memory – 8GB DDR4 RAM (expandable up to 32GB).
  • Built-In 3" Direct Thermal Printer – For quick, high-quality receipt printing.
  • Optional Add-Ons – Wi-Fi, 2D barcode scanner, payment terminal brackets, and floor stand.
  • Versatile Connectivity – Multiple USB, RS-232, VGA, and Ethernet ports.
  • Durable & Stylish Design – White finish with compact countertop footprint.
  • Designed for Various Applications – Ideal for retail, hospitality, ticketing, and self-check-in.


Product Specifications

Specification

Details

Processor

Intel® Elkhart Lake J6412 Quad-Core, up to 2.6GHz (1.5M cache)

Memory

8GB DDR4 (Expandable up to 32GB)

Storage

128GB SSD (Upgradable to 256GB)

Display

21.5" TFT LED Backlit LCD

Resolution

1920 x 1080 Full HD

Touch Panel

True-flat PCAP touch, 10-point multi-touch

Printer

Integrated 3" Direct Thermal Printer

Connectivity Ports

5 x RS-232 (4 x DB9, 1 x RJ45), optional 6th port; 4 x USB (1 x USB3.0, 7 x USB2.0); 1 x VGA; 1 x Gigabit Ethernet

Audio

Internal 5W speaker x 2

Operating System

Windows 10 IoT (64-bit, 2021)

Optional Accessories

Wi-Fi module, 2D barcode scanner, payment terminal brackets, floor stand

Operating Temperature

0°C to +50°C

Storage Temperature

-20°C to +70°C

Power Supply

AC 100 240V, 5060Hz

Dimensions (WxDxH)

334 x 275 x 776mm

Weight

15.5 kg

Colour

White

Features

Colour:
  • White
Display:
  • Single
Interface:
  • Ethernet
  • Serial
  • USB
  • VGA
Magstripe Option:
  • No
OS Compatability:
  • Windows 10 IOT
Printer:
  • Yes
Processor:
  • Intel J6412
  • Quad-core
Ram:
  • 8 GB
Scanner Capability:
  • Yes
Screen Size Font:
  • 21.5 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • Kiosk
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
SAM4S
