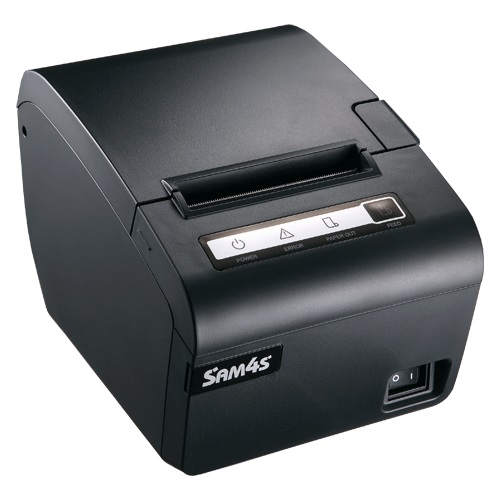

SAM4S Ellix 40 USB/Wifi Interface Thermal Receipt Printer

Auto Cutter, Windows, Direct Thermal , USB, Serial / RS232, Parallel, Ethernet, WIFI, 180 dpi, Black, 220mm/sec, 2 inch, 3 inch, SAM4S
$489.00
For Special & Volume Pricing - Call +61 2 9090 4610
ELLIX40UWBL
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The SAM4S Ellix 40 Thermal POS Printer offers fast, reliable, and versatile printing performance designed for modern retail, hospitality, and service environments. With a compact black design and high-speed thermal printing of up to 220mm/sec, the Ellix 40 delivers crisp, two-colour receipts using direct thermal technology.

Equipped with USB and WiFi connectivity, this printer ensures seamless integration with your existing POS setup. It supports flexible paper widths (80mm and 58mm), includes a drop-in paper loading system, and features a high-performance auto cutter for enhanced convenience. The Ellix 40 is ESC/POS compatible and supports barcode and QR code printing, making it an ideal solution for high-demand environments requiring speed, efficiency, and accuracy.

Product Features

  • High-speed thermal printing up to 220mm/sec

  • Supports 80mm and 58mm paper widths

  • Drop-in paper loading for quick roll changes

  • Auto cutter with up to 1.5 million cuts

  • USB & WiFi interface for flexible connectivity

  • Two-colour printing capability (with special paper)

  • Prints barcodes and QR codes

  • ESC/POS and STAR emulation compatibility

  • NV memory for bitmap data storage

  • Firmware updates via USB stick for field upgrades

Product Specifications

Printing Method

Line thermal dot print

Print Speed

Max. 220 mm/sec

Print Resolution

180 dpi

Print Width

72mm (80mm paper), 54mm (58mm paper)

Character Size

Font A: 12x24 dots, Font B: 9x17 dots

Paper Width

80 ±0/-1 mm, 58 ±0/-1 mm

Paper Diameter

Max. Ø83.0mm

Paper Thickness

0.06 – 0.08 mm

Emulation

ESC/POS, STAR

Interfaces

USB & WiFi (optional RS232, Ethernet)

Barcode Support

1D & 2D (QR Code, PDF417, etc.)

Buffer Memory

64KB Print Buffer, 8MB NV Memory

Drawer Port

1 port (supports 2 drawers)

External Dimensions

144 x 195 x 137 mm

Weight

3 kg

Operating Temp/Humidity

5–45 °C / 30–80% RH

Storage Temp/Humidity

-10–50 °C / 10–90% RH

Reliability

70 million lines (MCBF), 150 km head life

Auto Cutter Life

1.5 million cuts

Colour

Black

Features

Cutter Option:
  • Auto Cutter
OS Compatability:
  • Windows
Print Method:
  • Direct Thermal
Interface:
  • USB
  • Serial / RS232
  • Parallel
  • Ethernet
  • WIFI
Color:
  • Black
Print Speed :
  • 220mm/sec
Print Width:
  • 2 inch
  • 3 inch
Manufacturer
:
SAM4S

Attachments

Brochure (ellix30_40_brochure.pdf, 450 Kb) [Download]
