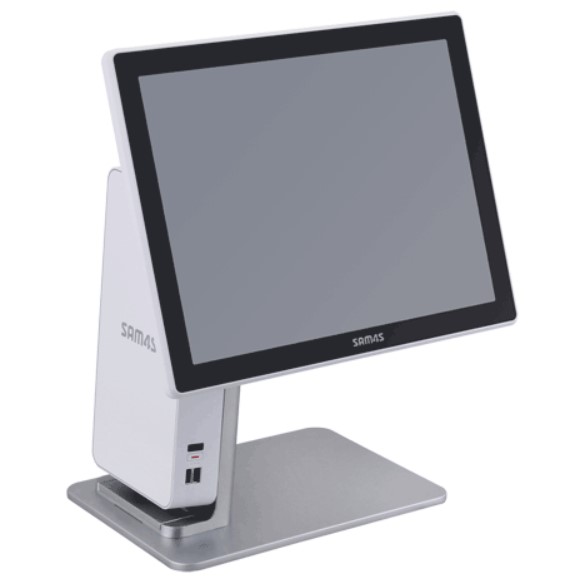

SAM4S FORZA-135 i3 PCAP 4G 128G SSD WIN10Iot LTSC Wh Slv

White, Silver, Single, Ethernet, HDMI, Serial, USB, No, Windows, No, Core i3, 4 GB, No, 15 inch, 128GB, SSD, All-in-one POS, Capacitative, 3 Years, SAM4S
$2,399.00
For Special & Volume Pricing - Call +61 2 9090 4610
SPTF135WS-40128SE
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The SAM4S FORZA-135 is a high-performance, fanless POS terminal designed for modern Australian retail and hospitality environments. Featuring a 15" LED true-flat PCAP touchscreen and powered by a 7th Gen Intel® Core™ i3 processor, this sleek, white-and-silver unit combines performance, style, and reliability in one compact package. Its fanless architecture ensures silent operation and reduced dust intake, making it ideal for hygiene-sensitive spaces. The IP55-rated front panel protects against dust and splashes, while multiple I/O ports offer versatile connectivity to peripherals, including cash drawers, scanners, and customer displays.

From energy efficiency to ease of maintenance, the FORZA-135 offers the ultimate combination of innovation and durability — backed by Windows 10 IoT LTSC for long-term stability in mission-critical applications.


Product Features

  • 15" LED LCD display with true-flat PCAP multi-touch interface
  • Powered by Intel® Core™ i3 7100U 2.4GHz (7th Gen Kaby Lake) processor
  • Fanless design with no ventilation holes for silent and dust-free operation
  • 4GB DDR4 RAM and 128GB SSD for smooth performance
  • Sleek white and silver chassis with slim form factor
  • IP55-rated front panel – dust and water-resistant
  • Multiple connectivity options including USB, HDMI, DP, RS-232, LAN, and cash drawer port
  • Supports optional expansion ports and peripherals
  • Energy-efficient and heat-optimised design for 24/7 reliability
  • Pre-installed with Windows 10 IoT Enterprise LTSC for long-term stability


Product Specifications

Specification

Details

Model

SPTF135WS-40128SE

Processor

Intel® Core™ i3-7100U, 2.4GHz, 3MB SmartCache

RAM

4GB DDR4 (expandable up to 32GB)

Storage

128GB SSD (Supports M.2 or SATA, upgradeable)

Display

15" LED Backlight LCD, 1024 x 768 resolution

Touch Technology

True Flat Projected Capacitive (PCAP)

I/O Ports

6 x USB, 4 x Serial (3 x DB9, 1 x RJ45), HDMI, DP, LAN, Audio, Cash Drawer

OS

Windows 10 IoT Enterprise LTSC

Audio

Internal 2W Speaker

Environmental Sealing

IP55 (front panel)

Operating Temp

0°C to +40°C (with SSD)

Power Supply

DC 12V/5A (60W)

Dimensions

355mm x 215mm x 432mm

Weight

5.35 kg

Colour

White and Silver


Features

Colour:
  • Silver
  • White
Display:
  • Single
Interface:
  • Ethernet
  • HDMI
  • Serial
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Core i3
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
SAM4S

Attachments

Manual (FORZA_leaflet_181219.pdf, 1,444 Kb) [Download]
