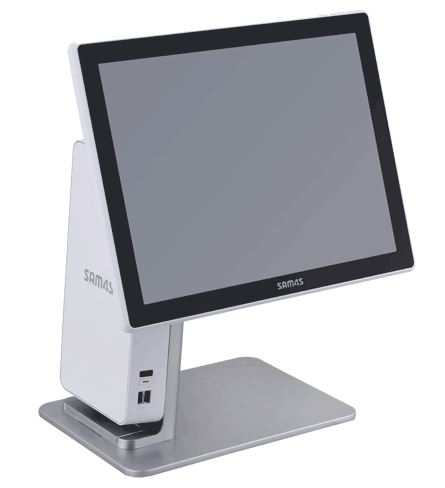

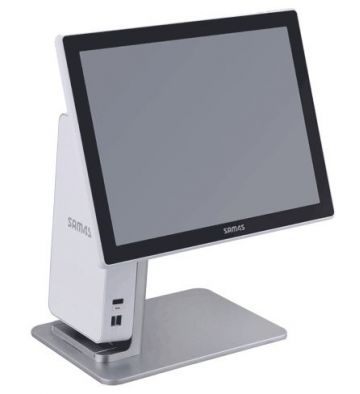

SAM4S FORZA-135 i3 PCAP 4G 128G SSD WIN10Iot White Silve

White, Silver, Single, HDMI, Ethernet, USB, Serial, No, Windows, No, Core i3, 4 GB, No, 15 inch, SSD, All-in-one POS, Capacitative, 3 Years, Posiflex
$2,499.00
For Special & Volume Pricing - Call +61 2 9090 4610
SPTF135WS-40128SD
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Enhance your business operations with the SAM4S FORZA-135 i3 Fanless POS Terminal – a stylish and reliable solution built for the demands of modern retail and hospitality environments. Featuring a sleek 15" LED display with true-flat PCAP touch technology, a fanless design for silent operation, and IP55-rated front panel protection, the FORZA-135 ensures superior durability and ease of use.

Powered by a 7th Gen Intel® Core™ i3 processor, 4GB DDR4 RAM, and a fast 128GB SSD, this POS terminal delivers responsive performance and efficient multitasking. Its compact footprint and minimalist silver and white design make it a perfect fit for any counterspace. Built for easy installation, maintenance, and expansion, the FORZA-135 is engineered for long-term serviceability and performance in fast-paced environments.


Product Features

  • 15" LED backlight display with true-flat PCAP multi-touch technology
  • 7th Generation Intel® Core™ i3-7100U Processor (2.40GHz, 3MB Cache)
  • Silent fanless operation with no ventilation holes for hygiene and reliability
  • Sleek silver & white chassis with a small footprint ideal for compact workspaces
  • 4GB DDR4 RAM and 128GB SSD storage standard (expandable)
  • IP55-rated front panel – dustproof and water-resistant
  • Easy to install, upgrade and maintain – designed for serviceability
  • Versatile connectivity: USB, Serial, Ethernet, HDMI, DisplayPort, Cash Drawer
  • Built-in 2W internal speaker for audio notifications
  • Windows 10 IoT Enterprise OS for enhanced security and compatibility


Product Specifications

Specification

Details

Model

SAM4S FORZA-135 i3 White/Silver

Processor

Intel® Core™ i3-7100U, 2.40 GHz, 3MB SmartCache

RAM

4GB DDR4 (2 slots, expandable up to 32GB)

Storage

128GB SSD (M.2 interface; optional 500GB HDD or larger SSDs)

Display

15" LED LCD, 1024 x 768 resolution

Touch Technology

True Flat PCAP Touch (5-Wire Resistive Touch Optional – MOQ Applies)

I/O Ports

4 x Serial (3 x DB9, 1 x RJ45), 6 x USB, 1 x HDMI, 1 x DP, 1 x LAN, 1 x Cash Drawer

Optional Ports

USB (x4), Serial (x2), Parallel (x1) via Type A/B/C Extensions

Audio

2W Internal Speaker

OS Compatibility

Windows 10 IoT Enterprise (POSReady 7, Win 8.1 Industry also supported)

Environmental Rating

IP55 front panel protection

Operating Temp

0 ~ +40°C, 20 ~ 85% RH with SSD

Storage Temp

-20 ~ +60°C, 10 ~ 85% RH

Power Supply

DC 12V/5A, External Adapter

Dimensions (W x D x H)

355mm x 215mm x 432mm

Weight

5.35 kg

Colour

White & Silver

Certifications

KC, CE, FCC, cTUVus, RoHS


Features

Colour:
  • Silver
  • White
Display:
  • Single
Interface:
  • Ethernet
  • HDMI
  • Serial
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Core i3
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Posiflex
