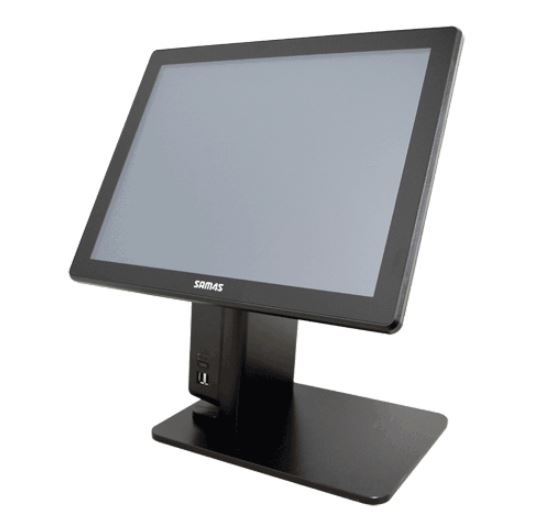

SAM4S FORZA-135 i3 PCAP 4G 128G SSD WIN10IotLTSC Black

Black, Single, Ethernet, USB, Serial, HDMI, No, Windows 10 IOT, No, Intel 7th Generation, Core i3, 4 GB, No, 15.6 inch, SSD, Touch POS, All-in-one POS, Capacitative, 2 Years, SAM4S
$1,269.00
For Special & Volume Pricing - Call +61 2 9090 4610
SPTF135BB-40128SE
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The SAM4S FORZA-135 is a premium-grade 15” all-in-one POS terminal purpose-built for retail, hospitality, and high-demand service environments in Australia. Powered by an energy-efficient Intel Core i3-7100U processor, the FORZA-135 delivers solid performance with 4GB DDR4 RAM and 128GB SSD, preloaded with Windows 10 IoT Enterprise LTSC 64-bit for optimal POS system compatibility.

Engineered for silent operation, this fanless terminal features a sleek, slim chassis and a true-flat PCAP touchscreen, housed behind an IP55-rated dust and water-resistant front panel—perfect for harsh environments. With a small footprint and superior serviceability, the FORZA-135 enhances both workspace efficiency and system reliability.

Ideal for Australian businesses seeking long-term durability, silent operation, and versatile connectivity options.


Product Features

  • 15” LED LCD with True-Flat PCAP touch technology
  • Intel Core i3-7100U 2.4GHz 7th Gen Processor for efficient performance
  • Fanless architecture for quiet, low-maintenance operation
  • Preloaded with Windows 10 IoT LTSC 64-bit
  • Durable, IP55-rated front panel resistant to dust and water
  • 128GB SSD and 4GB DDR4 RAM (expandable up to 32GB)
  • Compact and stylish black housing with easy-access ports
  • Multiple I/O ports: 6 USB, 4 serial (RS-232), 1 x HDMI, 1 x DisplayPort, and 1 x cash drawer port
  • Optional expansion ports for enhanced peripheral integration
  • Internal speaker for multimedia or audio alerts


Product Specifications

Specification

Details

Model

FORZA-135

Product ID / SKU

SPTF135BB-40128SE

Operating System

Windows 10 IoT Enterprise LTSC 64-bit

Processor

Intel Core i3-7100U 2.4GHz (7th Gen)

Memory

4GB DDR4 (expandable up to 32GB)

Storage

128GB SSD (supports M.2 SSD, optional HDD)

Display

15” LED LCD, 1024 x 768 resolution

Touch Technology

True Flat PCAP

Front Panel Protection

IP55-rated (dust and water-resistant)

I/O Ports

4 x RS232, 6 x USB, 1 x HDMI, 1 x DP, 1 x LAN, 1 x Cash Drawer

Audio

Internal 2W speaker

Power Supply

DC 12V/5A

Dimensions (WxDxH)

355mm x 215mm x 432mm

Weight

5.35 kg

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 60°C

Colour

Black

Warranty

24 Months


Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Ethernet
  • HDMI
  • Serial
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows 10 IOT
Printer:
  • No
Processor:
  • Core i3
  • Intel 7th Generation
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
  • Touch POS
Touch Technology:
Capacitative
Warranty:
2 Years
Manufacturer
:
SAM4S

Attachments

Brochure (FORZA_leaflet_181219_web.pdf, 1,444 Kb) [Download]
