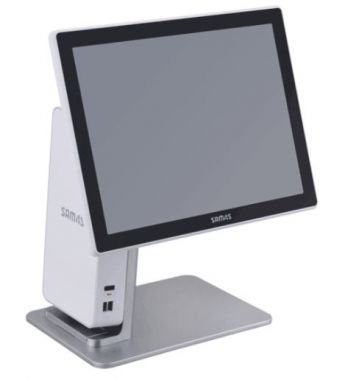

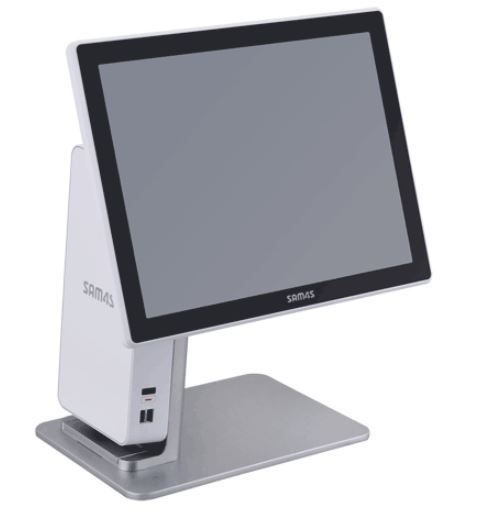

SAM4S FORZA-155 i5 PCAP 4G 128G SSD WIN10Iot White Silve TOUCH SYSTEM

FORZA135S/GODNN54GNW
$2,599.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

SAM4S FORZA-135 i3 PCAP 4G 128G SSD WIN10Iot White Silve

FORZA FANLESS,15”, INTEL i3 7100U CPU, 4GB DDR4 RAM, 128G SSD, WIN10 IoT 64 Bit, White & Silver

Features :

  • Fanless Touch System
  • 15" LED LCD Display with True-Flat PCAP Touch
  • Intel 7th Generation (Kaby Lake) Intel® Core™ i3 Processor 7100U 2.40 GHz, 3 MB SmartCache
  • Energy Efficient and Low Heat Generation Architecture
  • Slim Display, Sleek Chassis and Small Footprint Design
  • Easy Assembly & Maintnance
  • IP55 dust and water Proof Front Panel
  • Superior Serviceability and Easy Installation
  • Fanless Operation and No Ventilation Hole
  • Supporting M.2 SSD



Specifications :

CPU : Intel 7th Generation (Kaby Lake) Intel® Core™ i3 Processor 7100U 2.40 GHz, 3 MB SmartCache

Memory : DDR4 2 Slots (up to 32 GB)
Standard in Australia 4GB

Storage device(s) : In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" LED Backlight LCD Display

Resolution : 1024 x 768

Tilt Angle : N/A

Touch Panel : True Flat PCAP Touch (Standard in Australia)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F

I/O Ports : 4 x RS-232 Ports (3 x DB9, 1 x RJ45) with 5V/12V BIOS selectable
6 x Standard USB Ports
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x HDMI Port
1 x DP Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
Optional Extension Ports:
Type A; 4 x USB Port
Type B: 2 x RS232 Ports (1 x DB9, 1 x RJ45)
Type C: 1 x Parallel port

Audio : Internal Speaker 2W

OS Support : POSReady 7 / WIN 8.1 Industry Retail / WIN 10 IoT Enterprise

Environmental Sealing : IP55 to Front

Operating Environment : 0 ~ +40 °C, 20 ~ 85% RH with SSD

Storage Environment : -20 ~ +60 °C, 10 ~ 85% RH

Power Supply : DC 12V/5A

External Dimensions (WxDxH) : 355 x 215 x 432 mm

Weight : 5.35 Kg
