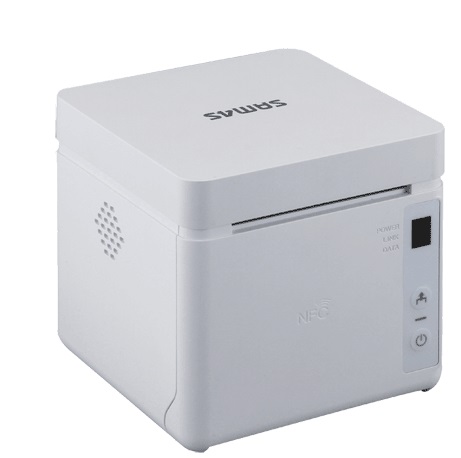

SAM4S GCUBE 100D USB RS232 ETH Interface White Thermal Printer

Auto Cutter, 83 mm, iOS, macOS, Android, Linux, Windows, Desktop, Thermal Print, USB, Serial / RS232, Parallel, Ethernet, WIFI, 180 dpi, 203 dpi , White, 250 mm/sec, 3 inch, SAM4S
$309.00
For Special & Volume Pricing - Call +61 2 9090 4610
GC102D-UERW
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The SAM4S Gcube-102 is the world’s smallest receipt printer, combining high-speed thermal printing with exceptional flexibility and modern design. Built for compact spaces, it supports both top and front paper exits, making it suitable for countertop or wall-mounted setups—even in water-prone environments like kitchens.

With a maximum print speed of 250mm/sec, high-resolution 203dpi printing, and multiple interface options (USB + Serial + Ethernet standard, Wi-Fi and Bluetooth optional), the Gcube-102 is an all-in-one solution for retail, hospitality, kiosk, and takeaway businesses.

Key usability features include LED notifications, jam-free printing, NFC setup, and easy drop-in paper loading from either top or front. This energy-efficient, ultra-durable printer delivers long-term performance, supporting 1.5 million cuts and 150km print head life.

Product Features

  • Ultra-compact design: Only 123mm x 123mm x 123mm – fits anywhere

  • High-speed printing: Up to 250mm/sec on 80mm paper

  • Front or top paper exit with waterproof front-loading

  • Built-in USB, Serial & Ethernet interfaces (Wi-Fi and Bluetooth optional)

  • JAM-free printing mechanism

  • Guillotine Auto Cutter rated for 1.5 million cuts

  • 203dpi high-resolution output (180dpi option available on special order)

  • Barcode & QR code support, including PDF417 and GS1 DataBar

  • NFC configuration & LED status lights for ease of use

  • ESC/POS and Star emulation for wide compatibility

  • Energy-efficient power supply (24V, 2.5A adapter included)

  • Available in Black or White (MOQ applies for White)

Product Specifications

Printing Method

Line Thermal Printing

Max Print Speed

250mm/sec (80mm mono), 150mm/sec (58mm), 100mm/sec (2-colour)

Resolution

203dpi (Gcube-102), 180dpi (Gcube-100 special order)

Print Width

80mm: 72mm; 58mm: 54mm

Auto Cutter

Guillotine, Partial or Full Cut – 1.5M cuts

Interfaces Available

USB + Serial + Ethernet (Standard)



USB + Parallel (Special Order), USB + Wi-Fi + Ethernet, USB + Bluetooth + Ethernet

Paper Support

80mm or 58mm thermal paper roll, Max Ø 83mm

Paper Thickness

0.06 – 0.08 mm

Paper Loading

Drop-in, front or top loading

Sensors

Paper End, Cover Open

Memory

Print Buffer: 64KB, NV Memory: 8MB

Supported Barcodes

UPC-A/E, EAN-8/13, Code 39/93/128, ITF, CODABAR, PDF417, QR Code

Emulation

ESC/POS, Star

Drivers Available

Windows, OPOS, JPOS, Linux, Mac (CUPS)

Software Utilities

Custom print utility included

Power Supply

AC 90–264V input; DC 24V/2.5A output (External Adapter)

Power Consumption

~2.0A average

Dimensions (WxDxH)

123mm x 123mm x 123mm

Weight

Approx. 0.75 kg

Operating Conditions

5–45°C, 10–90% RH

Storage Conditions

-10–50°C, 10–90% RH

Reliability

Print Head: 150km; Cutter: 1.5 million cuts; Mechanism: 70M lines

Colours Available

Black (White available by special order)

Features

Cutter Option:
  • Auto Cutter
Max Roll Diameter:
83 mm
OS Compatability:
  • Android
  • iOS
  • Linux
  • macOS
  • Windows
Receipt Printers Type:
  • Desktop
Print Method:
  • Thermal Print
Interface:
  • USB
  • Serial / RS232
  • Parallel
  • Ethernet
  • WIFI
Color:
  • White
Print Speed :
  • 250 mm/sec
Print Width:
  • 3 inch
Manufacturer
:
SAM4S

Attachments

Brochure (Gcube_leaflet_web.pdf, 729 Kb) [Download]
