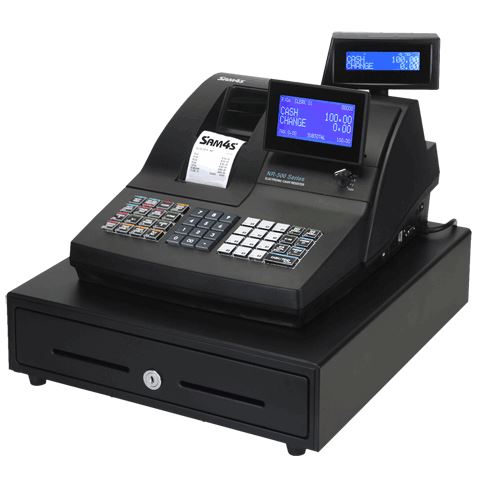

SAM4S NR-520 2-station Thermal ECR Raised Keyboard Cash Register

$708.00
(Inc GST)
For Special & Volume Pricing - Call 0291 919 694
NR520RB
+

Description

SAM4S NR-520 2-station Thermal ECR Raised Keyboard Cash Register

SAM4S NR-510 Cash Register.
Raised Keyboard 48 Keys, 2 Station thermal, 2 Line LCD Display, 4 bill/8 coin Cash Drawer with media slots, 2 x RS-232, 1 x USB, Ethernet port for download and upload files, SD Socket, Black


Features :


  • Midrange Dual Station Cash Register
  • Wide Multi Line Graphic Display
  • 16 Char. x 2 Line LCD Rear Display
  • 90-Key Flat or 48 Key Raised Keyboard
  • Electronic Journal
  • Easy Data Back up, Restore and Report
  • Ethernet/USB/RS232 PC Communication
  • SD Backup, Restore & Reporting
  • RS232 for Kitchen Printing, Security or Scanning

Specifications :

Printer : 2 Station Direct Thermal Type

Printing Speed (Max.) : up to 18 Lines/sec

Paper Width : 57 mm +/- 0.5 mm

Paper Roll Diameter : Max Ø 83.0 mm

Paper Supply Method : Easy Paper Loading,

Keyboards : NR-520: 90 Key Flat Keyboard
NR-520R: 48 Raised Key Keyboard (Special Order only, MOQ applies)

Display : Operator: 192 x 64 Graphic LCD
Customer: 16 Character x 2 Line LCD

Drawer : Metal drawer 4B/8C with media Slots

I/O Ports : 2 x RS232 (1 x DB9F, 1 x RJ45)
1 x USB port (Software Configurable to host/device)
1 x Ethernet (for PC Comms)

Memory : FlashROM: 2 MByte (internal CPU) for Firmware
RAM: 8 MBits SRAM

Memory Protection : 60 Days

Memory Configuration : up to 8000 PLU's
Max. 99 Clerks
Max. 99 Groups
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 15000 Line Electronic Journal
(Maximums depends on Memory sharing choices)

OS Functions : 32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
24 Character Description
14 Digit PLU Number
5 Modifier Levels
10 Macro keys
10 Tender Keys
9 Auto Cash Keys
3 Keyboard Levels
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction

Software Utilities : Programming Utility Software (Ethernet/Serial/USB)

Power Supply : AC 230V +/- 10%

Power Consumption : 10 W

EMC/Safety Standards : CE, FCC, UL, TUV, RoHS, C-tick

External Dimensions (WxDxH) : 400 x 450 x 266 mm

Weight : 13 Kg



Attachments

Brochure (sam4s.pdf, 204 Kb) [Download]
