Description

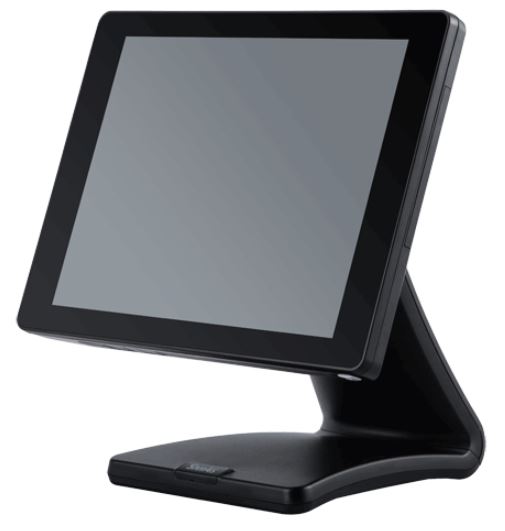

The SAM4S SAP-6600 15" Android Touch POS Terminal is a high-performance and reliable point-of-sale solution designed for retail, hospitality, and service industries across Australia. Equipped with an Intel Celeron N3160 Quad-Core CPU and 2GB DDR3 RAM (expandable to 8GB), it delivers smooth performance with low power consumption.
Featuring a 15" true-flat PCAP multi-touch display with 1024 x 768 resolution, the SAP-6600 offers an intuitive user interface, while its fanless design ensures silent operation and long-term durability in demanding environments. Built-in Wi-Fi and Bluetooth connectivity make integration seamless, and multiple I/O ports allow for flexible expansion with peripherals such as cash drawers, customer displays, and barcode scanners.
With Android 6.0 Marshmallow OS, the SAP-6600 provides a modern and stable platform for POS applications. Optional customer-facing displays and MSR modules ensure enhanced customer interaction, making this POS system ideal for retail stores, cafés, and restaurants.
Product Features
- 15” LED backlit LCD with 1024 x 768 resolution (XGA)
- True-flat PCAP touch panel for smooth and accurate input
- Powered by Intel Celeron N3160 Quad-Core CPU up to 2.24GHz
- 2GB DDR3 RAM standard, expandable to 8GB
- 16GB SSD storage (standard in Australia & NZ) for reliable performance
- Built-in Wi-Fi and Bluetooth connectivity
- Fanless design for silent, dust-resistant, and energy-efficient operation
- Multiple I/O ports: 6 x USB, 3 x RS232, 1 x Ethernet, 1 x VGA, cash drawer port
- Optional customer displays (2-line or 7”) and 3-track MSR support
- IP55-rated front panel for dust and splash resistance
Product Specifications
Specification | Details |
Model | SAM4S SAP-6600 |
Processor (CPU) | Intel Celeron N3160 Quad-Core up to 2.24GHz |
Memory | 2GB DDR3 (expandable to 8GB) |
Storage | 16GB SSD |
Display | 15” LED Backlight LCD |
Resolution | 1024 x 768 (XGA) |
Touch Technology | True-flat PCAP (Standard) / Resistive (Optional, MOQ) |
I/O Ports | 3 x RS232, 6 x USB (4 x USB 3.0, 2 x USB 2.0), 1 x LAN, 1 x VGA, 1 x Parallel (optional), 1 x Cash Drawer (12V/24V selectable), 3 x Audio ports |
Connectivity | Wi-Fi & Bluetooth (Standard in AU/NZ) |
OS Support | Android 6.0 Marshmallow |
Environmental Sealing | IP55 (front panel) |
Operating Temperature | 0°C ~ +40°C, 20 ~ 85% RH |
Storage Temperature | -20°C ~ +60°C, 10 ~ 85% RH |
Power Supply | DC 12V/5A |
Dimensions (WxDxH) | 380mm x 380mm x 380mm |
Weight | 5.9kg |
Features
- Black
- Single
- Bluetooth
- Ethernet
- Serial
- USB
- VGA
- WiFi
- No
- Android
- No
- Intel Celeron
- 2 GB
- No
- 15 inch
- 16GB
- SSD
- All-in-one POS
- Touch POS
