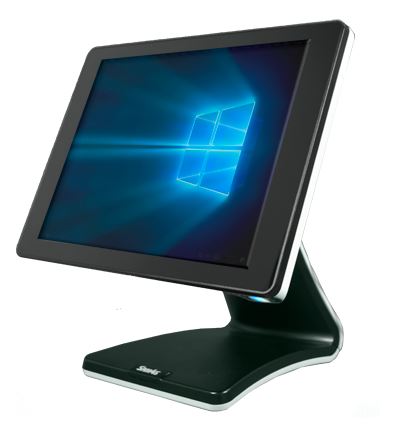

Sam4S Titan S360 J1900 PCAP 4G 128G SSD WIN10I C Blk-Wh Fanless Touch POS Terminal

White, Black, Dual, WLAN, VGA, USB, Serial, No, Windows 10 IOT, No, Intel Celeron, 4 GB, No, 15 inch, 128GB, SSD, All-in-one POS, Capacitative, 1 Year, SAM4S
$1,489.00
For Special & Volume Pricing - Call +61 2 9090 4610
SPT360SBW-40128SE
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Designed for modern retail and hospitality environments, the SAM4S Titan S360 is a compact, fanless POS terminal that offers exceptional durability and performance. Its 15" LED LCD with True-Flat Projected Capacitive (PCAP) touch ensures precise input, while the sleek black-and-white chassis complements any point-of-sale counter.

Powered by an Intel J1900 Quad-Core processor and supported by 4GB RAM and a 128GB SSD, the S360 ensures reliable performance with low power consumption. The fanless design and IP55-rated front panel make it ideal for high-traffic environments where dust and splash resistance are essential.

Backed by Microsoft Azure certification, this system supports scalable, cloud-connected retail applications. The small footprint, easy installation, and flexible I/O ports make this an ideal choice for businesses seeking dependable, quiet operation with a modern look.


Product Features

  • 15” LED LCD display with True-Flat PCAP touchscreen
  • Intel J1900 Quad-Core processor, up to 2.42GHz for stable performance
  • Fanless and ventless design for silent, maintenance-free operation
  • IP55-rated front panel – resistant to dust and water
  • Energy-efficient architecture with low heat output
  • 128GB SSD (expandable) with M.2 slot for faster data access
  • 4GB DDR3L RAM, expandable to 8GB
  • Sleek Black/White chassis with small footprint for limited counter space
  • Wide range of I/O ports for peripheral integration (USB, COM, VGA, Ethernet)
  • Microsoft Azure Certified – ready for next-gen cloud POS system.


Product Specifications

Specification

Details

Model

SPT360SBW-40128SE

Display

15” LED LCD, 1024 x 768 resolution

Touch Panel

True-Flat Projected Capacitive (PCAP)

Processor

Intel Bay Trail J1900 Quad-Core, 2.42GHz (2M Cache)

Memory

4GB DDR3L (Expandable to 8GB)

Storage

128GB SSD, M.2 slot supported

I/O Ports

4 x RS232 (1 RJ45), 6 x USB (2 x USB 3.0), VGA, Ethernet, Audio, Cash Drawer

Expansion Slots

1 x Mini PCIe, 1 x M.2

Operating System

Windows 10 IoT, POSReady 7, Win 8 Industry Retail

Environmental Protection

IP55-rated front panel

Operating Temp.

0°C to 40°C, 20–85% RH

Storage Temp.

-20°C to 60°C, 10–85% RH

Power Supply

12V / 5A DC adapter

Dimensions (WxDxH)

380mm x 380mm x 380mm

Weight

5.9 kg

Colour

Black and White

Features

Colour:
  • Black
  • White
Display:
  • Dual
Interface:
  • Serial
  • USB
  • VGA
  • WLAN
Magstripe Option:
  • No
OS Compatability:
  • Windows 10 IOT
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
1 Year
Manufacturer
:
SAM4S

Attachments

Brochure (spt360_brochure.pdf, 270 Kb) [Download]
