SAM4S TITAN S360 J1900 PCAP 4G 128G SSD WIN10I Touch Terminal

White, Dual, VGA, USB, Serial, Ethernet, No, Windows 10 IOT, No, Intel Celeron, 4 GB, No, 10.1 inch, 15.6 inch, SSD, All-in-one POS, Capacitative, 1 Year, SAM4S
$1,489.00
For Special & Volume Pricing - Call +61 2 9090 4610
SPT360SBW-40128SD
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

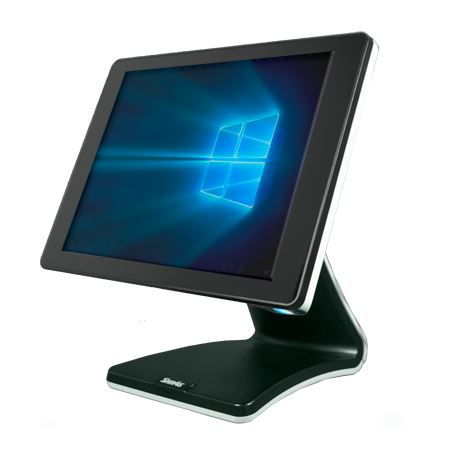

The SAM4S TITAN S360W POS Terminal Bundle delivers a powerful, compact, and energy-efficient solution for retail, hospitality, and service environments. Featuring a sleek, fanless 15” LED LCD display with projected capacitive (PCAP) touch, the S360W combines modern aesthetics with robust functionality.

Powered by an Intel J1900 Quad-Core processor, this terminal is engineered for silent operation and high durability with IP55-rated front protection against dust and spills. Its true-flat design, M.2 SSD support, and slim chassis make it ideal for limited counter spaces while ensuring easy maintenance and flexible installation. This bundle includes the GC102D customer display, offering a complete out-of-box solution.

With certification from Microsoft Azure, the S360W supports cloud integrations, ensuring you're ready for next-gen POS systems.


Product Features

  • 15" LED LCD with True-Flat Projected Capacitive (PCAP) Touch for seamless user interaction
  • Intel Bay Trail J1900 Quad-Core processor up to 2.42GHz with low power consumption
  • Fanless design with no ventilation holes for silent operation and enhanced reliability
  • IP55-rated front panel – water and dust resistant, perfect for busy environments
  • Sleek, slim display with compact footprint to optimise counter space
  • 128GB SSD storage with M.2 expansion support for faster performance
  • 4GB DDR3L RAM, expandable to 8GB
  • Multiple I/O ports including USB 2.0/3.0, RS232, RJ45, VGA, and cash drawer support
  • Includes GC102D Customer Display (White) for enhanced customer engagement
  • Windows 10 IoT OS preloaded – secure and reliable


Product Specifications

SpecificationDetails
ModelSPT360SBW-40128SD
Display15" LED LCD, 1024 x 768 Resolution
Touch PanelProjected Capacitive (PCAP), True Flat
ProcessorIntel Bay Trail J1900 Quad Core, 2.42GHz, 2M Cache
Memory4GB DDR3L (Expandable to 8GB)
Storage128GB SSD (M.2 Supported)
Connectivity4 x RS232, 6 x USB (2x USB 3.0, 4x USB 2.0), 1 x Ethernet, 1 x VGA, 1 x Audio Out, 1 x Cash Drawer
Expansion SlotsMini PCIe Slot, M.2 Slot
Operating SystemWindows 10 IoT, POSReady 7, Win 8 Industry Retail
AudioLine Out (Audio Port)
Environmental SealingIP55 Front Panel
Operating Temp.0 ~ 40°C, 20 ~ 85% RH
Storage Temp.-20 ~ 60°C, 10 ~ 85% RH
Power SupplyDC 12V / 5A
Dimensions (WxDxH)380mm x 380mm x 380mm
Weight5.9 kg
ColourWhite

Features

Colour:
  • White
Display:
  • Dual
Interface:
  • Ethernet
  • Serial
  • USB
  • VGA
Magstripe Option:
  • No
OS Compatability:
  • Windows 10 IOT
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Back:
  • 10.1 inch
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
1 Year
Manufacturer
:
SAM4S

Attachments

Brochure (spt360_brochure.pdf, 270 Kb) [Download]
