SAM4S TITAN S360 J1900 PCAP 4G 128G SSD WIN10IoT BLACK TOUCH SYSTEM

CGOD54BNB
$1,592.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+
Sam4s

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

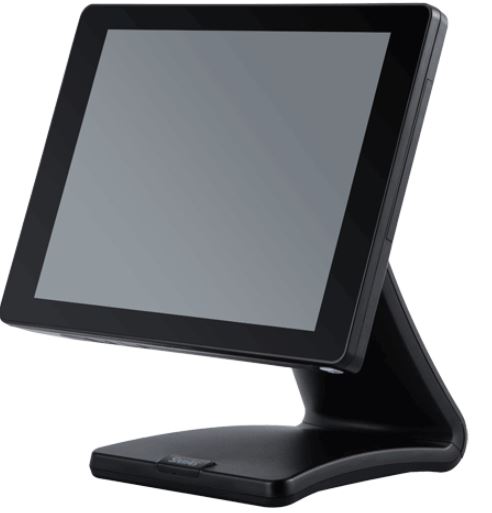

SAM4S TITAN S360 J1900 PCAP 4G 128G SSD WIN10IoT Black

TITAN S360 FANLESS Touch System,15” PCAP Bezelfree, J1900 up to 2.42G Quad core, 2M cache, 4GB DDR3L RAM, 128GB SSD, Black, WIN10 IoT 64 bit Preloaded

Features :

  • Fanless Touch System
  • 15" LED LCD Display with True-Flat PCAP Touch
  • Intel Bay Trail J1900 up to 2.42G Quad core CPU, 2M cache
  • Energy Efficient and Low Heat Generation Architecture
  • Slim Display, Sleek Chassis and Small Footprint Design
  • IP55 dust and water Proof Front Panel
  • Superior Serviceability and Easy Installation
  • Fanless Operation and No Ventilation Hole
  • Supporting M.2 SSD
  • Microsoft Azure certified

Specifications :

CPU : Intel Bay Trail J1900 up to 2.42G Quad core (2M Cache)

Memory : DDRIIIL One slot. 4GB standard expandable to 8GB DDRIIIL
expansion slots: mini PCIe slot & m.2 Slot

Storage device(s) : In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" LED Backlight LCD Display

Resolution : 1024 x 768

Tilt Angle : N/A

Touch Panel : True Flat PCAP Touch (Standard in Australia)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F

I/O Ports : 4 x RS-232 Ports (2 x DB9, 1 x RJ45) with 5V/12V BIOS selectable, one port selectable to RS422/485
6 x Standard USB Ports (2 x USB 2.0/2 x USB 3.0 on Bottom, 2 x USB 2.0 on the side)
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x VGA Port for 2nd Display + 12V power outlet
1 x Parallel port (Factory Option)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
1 x Audio Ports (Line out)

Audio : N/A

OS Support : POSReady 7 / WIN 8 Industry Retail / WIN IoT

Environmental Sealing : IP55 to Front

Operating Environment : 0 ~ +40 °C, 20 ~ 85% RH with SSD

Storage Environment :

-20 ~ +60 °C, 10 ~ 85% RH

Power Supply : DC 12V/5A

External Dimensions (WxDxH) : 380mm x 380mm x 380mm

Weight : 5.9 Kg



Attachments

Brochure (SAM4S.pdf, 270 Kb) [Download]
