SAM4S TITAN S560 J6412 PCAP 4G 128G SSD WIN10 2021 Blk

Black, Single, WiFi, USB, Serial, Windows 10 IOT, No, Intel Celeron, 4 GB, No, 15 inch, SSD, Touch POS, All-in-one POS, Capacitative, 3 Years, SAM4S
$1,329.00
For Special & Volume Pricing - Call +61 2 9090 4610
SPT560SB-40128S21
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

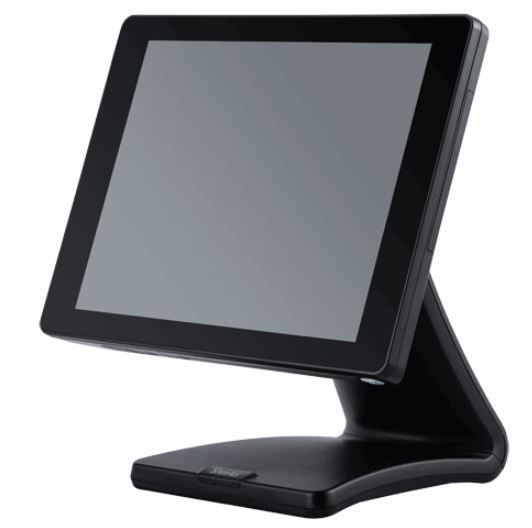

The SAM4S TITAN S560 is a high-performance, fanless 15-inch all-in-one POS terminal, purpose-built for retail, hospitality, and service-driven industries in Australia. Powered by the Intel J6412 Quad-Core processor and equipped with 4GB DDR4 RAM and 128GB SSD, the TITAN S560 delivers energy-efficient performance and seamless multitasking in high-traffic environments.

The bezel-free True Flat PCAP touchscreen, paired with a robust IP55-rated front panel, ensures durability and a premium user experience. A sleek, compact design allows for easy installation with optional VESA mounting and modular peripheral support. Backed by Windows 10 IoT 64-bit, it integrates easily into enterprise environments with support for Microsoft Azure and industry-standard accessories.


Product Features

  • 15” LED backlit display with 1024 x 768 resolution
  • True Flat Projective Capacitive (PCAP) touchscreen
  • Intel J6412 Quad-Core processor, up to 2.6GHz
  • 4GB DDR4 RAM (expandable up to 32GB)
  • 128GB SSD storage (expandable)
  • Fanless architecture for silent and efficient operation
  • IP55-rated front panel for water and dust resistance
  • Pre-installed with Windows 10 IoT Enterprise (64-bit)
  • Extensive I/O ports including USB, Serial, LAN, Audio, VGA, and Cash Drawer
  • Optional VFD or rear LCD customer display, MSR, and wall mounting
  • Certified for CE, FCC, RoHS, CB, and Microsoft Azure


Product Specifications

Specification

Details

Model

SAM4S TITAN S560

Product ID

SPT560SB-40128S21

Operating System

Windows 10 IoT Enterprise 2021 (64-bit)

Processor

Intel Celeron J6412, Quad-Core, up to 2.6GHz

Cache

1.5MB Smart Cache

Memory

4GB DDR4 (2 slots, expandable to 32GB)

Storage

128GB SSD (mSATA/m.2/SATAIII 2.5” supported)

Display

15” LED LCD, 1024 x 768 Resolution

Touch Panel

True Flat Projective Capacitive (PCAP)

Audio

Internal 2W Speaker

Ethernet

1 x 10/100/1000Mb LAN (RJ45)

USB Ports

6 x USB (2 x USB 2.0 side, 2 x USB 2.0 & 2 x USB 3.0 bottom)

Serial Ports

3 x RS-232 (2 x DB9, 1 x RJ45), one selectable RS422/485

VGA Port

1 x VGA with 12V power for second display

Cash Drawer Port

1 x RJ11 (12V/24V selectable)

Audio Port

1 x Line-out

Expansion Slot

1 x m.2 Slot

Peripheral Options

MSR, iButton, Fingerprint, Rear Display (9.7” or 15”)

Environmental Sealing

IP55 front panel

Operating Temp.

0°C to +40°C

Storage Temp.

-20°C to +60°C

Humidity

20% to 85% RH (non-condensing)

Power Supply

DC 12V/5A (60W)

Dimensions (WxDxH)

379mm x 362mm x 264mm

Weight

6.0 kg

Certifications

CE, FCC, CB, RoHS, cTUVus (NRTL), Microsoft Azure

Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Serial
  • USB
  • WiFi
OS Compatability:
  • Windows 10 IOT
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
  • Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
SAM4S

Attachments

Brochure (TITAN-S500_Series-P.pdf, 219 Kb) [Download]
